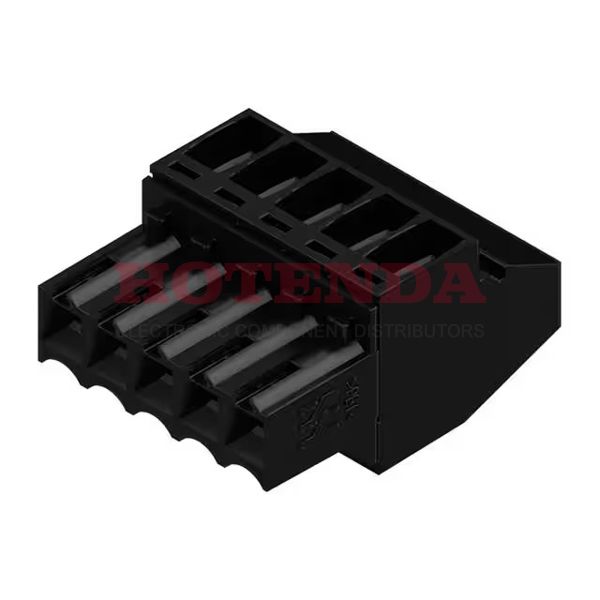

Name: 1638810000
Brand: Weidmüller
SKU: 1638810000
Price: 3.94000 USD
Availability: InStock

new-10%

1638810000

Manufacturer part number:1638810000

Manufacturer:Weidmüller

Description:1638810000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1638810000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Cable
Mounting Type	Free Hanging (In-Line)
Material	PBT
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2009
Series	Omnimate BL
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Termination	Screw
Connector Type	Terminal Block
Type	Plug, Female Sockets
Color	Black
Number of Rows	1
Gender	Female
Voltage - Rated	300V
Additional Feature	HIGH DENSITY
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.138 3.50mm
Total Number of Contacts	5
Orientation	Straight
Ingress Protection	IP20
Insulation Height	0.884 22.45mm
Current Rating	12A
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Approval Agency	CSA
UL Flammability Code	94V-0
Insulation Resistance	1MOhm
Max Current Rating	8A
Number of Levels	1
Wire/Cable Gauge	28 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	14-28 AWG
Voltage - IEC	320V
Torque - Screw	0.2-0.25 Nm (1.7-2.2 Lb-In)
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.2-1.5mm2
Number of Positions Per Level	5
Screw Size	M2
Stripping Length	6mm
Height	22.5mm
Length	17.5mm
Width	11.6mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1638810000 Product Details

1638810000 Overview

Packaging for this item is Terminal Block.The mounting type of the device is Free Hanging (In-Line).Packaged in a Bulk case.This product is part of the Omnimate BL Series.Besides that, there's also HIGH DENSITY, to name a few.Cable is the mounting point for the part.The device runs in -50°C~100°C Operating Temperature.With this part, you get a lot of benefits that you won't find in other Plug, Female Sockets products.
