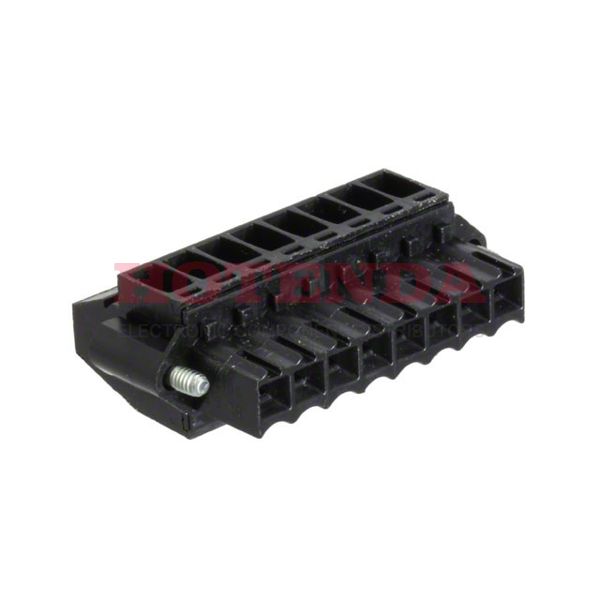

Name: 1639300000
Brand: Weidmüller
SKU: 1639300000
Price: 10.30000 USD
Availability: InStock

new

1639300000

Manufacturer part number:1639300000

Manufacturer:Weidmüller

Description:1639300000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1639300000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging, Panel
Mounting Type	Free Hanging (In-Line)
Material	PBT
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2009
Series	Omnimate BL
JESD-609 Code	e3
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Screw
Connector Type	Terminal Block
Type	Plug, Female Sockets
Color	Black
Number of Rows	1
Voltage - Rated	300V
Additional Feature	HIGH DENSITY
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.138 3.50mm
Orientation	Straight
Ingress Protection	IP20
Insulation Height	0.884 22.45mm
Current Rating	12A
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Approval Agency	CSA
Number of Contacts	8
UL Flammability Code	94V-0
Voltage	300V
Max Current Rating	8A
Number of Levels	1
Current	8A
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	14 AWG
Wire/Cable Gauge	28 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	14-28 AWG
Voltage - IEC	320V
Torque - Screw	0.2-0.25 Nm (1.7-2.2 Lb-In)
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.2-1.5mm2
Current - IEC	12A
Screw Size	M2
Stripping Length	6mm
Height	22.5mm
Length	31.5mm
Width	11.6mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1639300000 Product Details

1639300000 Overview

It comes in a Terminal Block package.Mounting type is Free Hanging (In-Line).We use a Bulk case to package the product.The product is a member of the Omnimate BL Series.Additionally, there are features like HIGH DENSITY, just to name a few.In many ways, it is more powerful due to its Mating Flange feature.Part Cable, Free Hanging, Panel is mounted to the part.Operating temperature is set to -50°C~100°C.As with other Plug, Female Sockets products, this part has a lot of benefits.
