1640170000

1640170000

1640170000

Weidmüller

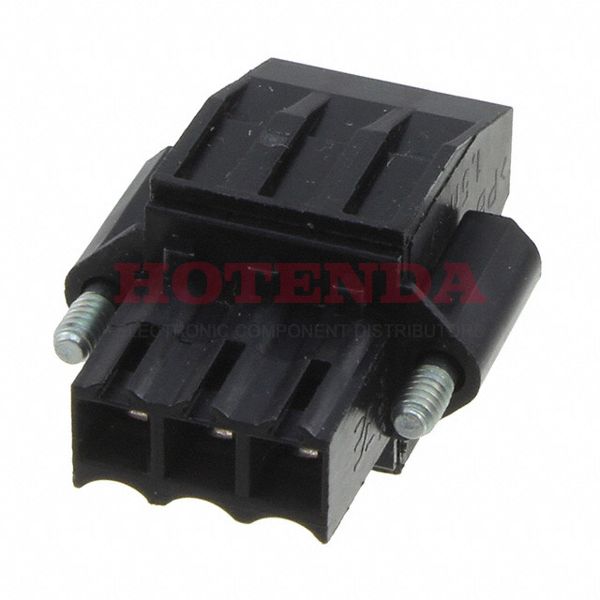

Bulk 0.138 3.50mm Black 1 Levels Free Hanging (In-Line) Plug, Female Sockets Omnimate BL Polybutylene Terephthalate (PBT) Tin Copper Alloy

SOT-23

1640170000 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 16 Weeks
Contact MaterialCopper Alloy
Mount Free Hanging, Panel
Mounting Type Free Hanging (In-Line)
Housing Material Polybutylene Terephthalate (PBT)
Operating Temperature-50°C~100°C
PackagingBulk
Series Omnimate BL
Published 2009
JESD-609 Code e3
Feature Mating Flange
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Type Plug, Female Sockets
Color Black
Number of Rows 1
Voltage - Rated 300V
Additional FeatureHIGH DENSITY
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.138 3.50mm
Orientation Straight
Ingress ProtectionIP20
Insulation Height 0.888 22.56mm
Current Rating10A
Termination Style Screw - Clamping Yoke (Tension Sleeve)
Approval Agency CSA
Number of Contacts 3
UL Flammability Code 94V-0
Voltage 300V
Number of Levels 1
Current 8A
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 14 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 14-28 AWG
Voltage - IEC 320V
Torque - Screw 0.2-0.25 Nm (1.7-2.2 Lb-In)
Plug Wire Entry 270°
Wire Gauge or Range - mm² 0.2-1.5mm2
Current - IEC 12A
Screw Size M2
Stripping Length 6mm
Height 22.6mm
Length 14mm
Width 11.6mm
Material Flammability Rating UL94 V-0
Radiation HardeningNo
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
In-Stock:2538 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$4.44000$4.44
10$3.38400$33.84
25$3.17000$79.25
50$2.81780$140.89
100$2.75650$275.65
250$2.54212$635.53
500$2.29710$1148.55

1640170000 Product Details

1640170000 Overview


This device's mounting type is Free Hanging (In-Line).It's packaged in a Bulk case.Omnimate BL Series product.There are also features like HIGH DENSITY, just to name a few.Its Mating Flange feature makes it more powerful in a number of ways.Free Hanging, Panel is mounting the part.Running in -50°C~100°C Operating Temperature.There are a number of benefits that this part has in common with other Plug, Female Sockets products.

1640170000 Features


Omnimate BL series


1640170000 Applications


There are a lot of Weidmüller
1640170000 Terminal Blocks applications.


  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
