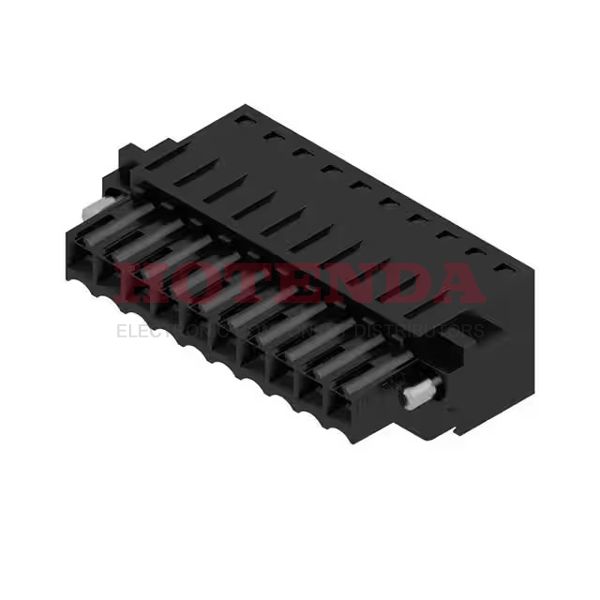

Name: 1691190000
Brand: Weidmüller
SKU: 1691190000
Price: 8.59000 USD
Availability: InStock

new-10%

1691190000

Manufacturer part number:1691190000

Manufacturer:Weidmüller

Description:1691190000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1691190000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2008
Series	Omnimate BL
JESD-609 Code	e3
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Termination	Screwless
Type	Plug, Female Sockets
Color	Black
Number of Rows	1
Voltage - Rated	300V
Additional Feature	HIGH DENSITY
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.138 3.50mm
Orientation	Straight
Ingress Protection	IP20
Insulation Height	0.512 13.00mm
Current Rating	14.5A
Termination Style	Screwless - Spring Cage, Tension Clamp
Approval Agency	CSA, UR
Number of Contacts	10
UL Flammability Code	94V-0
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	14 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	14-26 AWG
Voltage - IEC	320V
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-1.5mm2
Current - IEC	14.5A
Stripping Length	10mm
Height	13mm
Length	42mm
Width	21.9mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1691190000 Product Details

1691190000 Overview

A Free Hanging (In-Line) mounting type is specified for the device.The product is packaged in a Bulk case.As a product of the Omnimate BL Series, it can be found in this category.Additionally, there are other features, such as HIGH DENSITY.This feature renders it more powerful in a number of ways because of its Mating Flange feature.There is a mounting hole at Cable, Free Hanging.Device runs at -50°C~100°C Operating Temperature.There are a number of benefits that this part has in common with other Plug, Female Sockets products.
