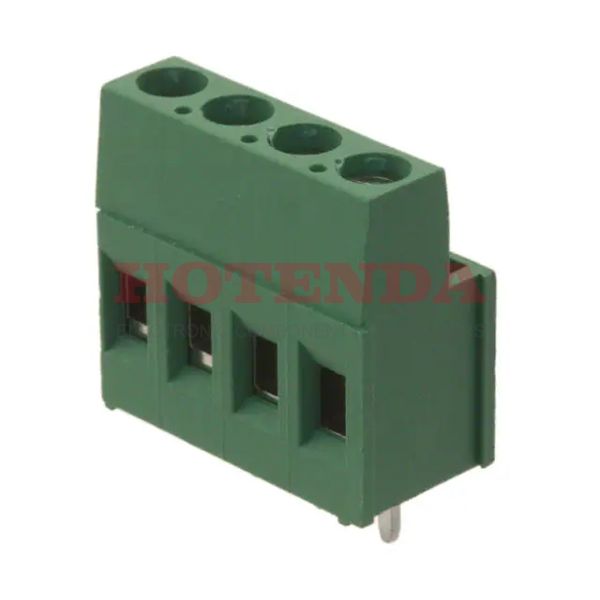

Name: 284392-4
Brand: TE Connectivity AMP Connectors
SKU: 284392-4
Price: 2.17000 USD
Availability: InStock

new-10%

284392-4

Manufacturer part number:284392-4

Manufacturer:TE Connectivity AMP Connectors

Description:0.150 3.81mm Green Tray Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 14-30 AWG Buchanan

Case Package:SOT-23

Datasheet:284392-4 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 3 days ago)
Factory Lead Time	12 Weeks
Contact Material	Brass
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Material - Plating	Brass - Tin Plated
Clamp Material - Plating	Brass - Nickel Plated
Screw Material - Plating	Brass - Nickel Plated
Packaging	Tray
Series	Buchanan
Published	2002
Feature	Interlocking (Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Color	Green
Number of Rows	1
Voltage - Rated	300V
Pitch	0.150 3.81mm
Orientation	Straight
Depth	8.2mm
Current Rating	12A
Number of Contacts	4
Wire Gauge	14-30 AWG
Max Voltage Rating (AC)	300V
Max Current Rating	12A
Number of Levels	1
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	30 AWG
Number of Decks	1
Terminal and Terminal Block Type	MODULAR TERMINAL BLOCK
Torque - Screw	0.25 Nm (2.2 Lb-In)
Number of Ways	4
Safety Approval	UL
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Max Supply Voltage (AC)	300V
Length	15.74mm
Length - Tail	3.5mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

284392-4 Product Details

284392-4 Overview

It comes in Receptacle packaging.The device's mounting type is Through Hole.In order to package the product, a Tray case is used.It belongs to the Buchanan Series of products.It's best to use it when the temperature is below 105°C.This device must operate at a minimum temperature of -40°C.Its Interlocking (Side) feature renders it more powerful in many ways.The part is mounted by Through Hole.
