Name: 1699680000
Brand: Weidmüller
SKU: 1699680000
Price: 2.41000 USD
Availability: InStock

new-10%

1699680000

Manufacturer part number:1699680000

Manufacturer:Weidmüller

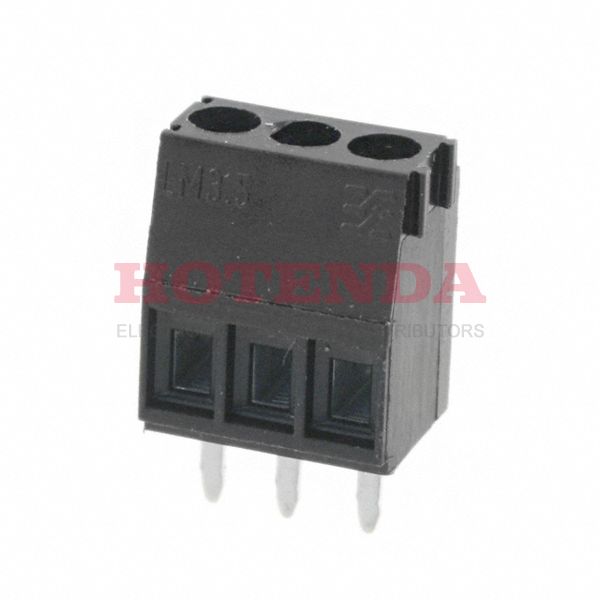

Description:0.138 3.50mm Black Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Clamping Yoke, Tension Sleeve 1 Levels 14-22 AWG Omnimate LM

Case Package:SOT-23

Datasheet:1699680000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Copper
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Material - Plating	Copper Tin Alloy - Tin Plated
Operating Temperature	-20°C~100°C
Packaging	Bulk
Series	Omnimate LM
Published	2002
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Screw
ECCN Code	EAR99
Color	Black
Number of Rows	1
Voltage - Rated	300V
Additional Feature	LOW PROFILE
Pitch	0.138 3.50mm
Orientation	Straight
Current Rating	10A
Wire Gauge	14-22 AWG
Number of Levels	1
Wire Gauge (Max)	22 AWG
Wire Gauge (Min)	14 AWG
Wire/Cable Gauge	22 AWG
Number of Decks	1
Terminal and Terminal Block Type	MODULAR TERMINAL BLOCK
Torque - Screw	0.2-0.25 Nm (1.7-2.2 Lb-In)
Number of Ways	3
Safety Approval	UL; VDE; CSA
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Clamping Yoke, Tension Sleeve
Screw Thread	M2
Number of Positions Per Level	3
Height	12.8mm
Width	8.3mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-2
Lead Free	Lead Free

1699680000 Product Details

1699680000 Overview

There is a mounting type of Through Hole for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the Omnimate LM Series.Moreover, there are a number of other features, including LOW PROFILE, to name just a few.Through Hole is used to mount the part.In this case, the device operates at -20°C~100°C Operating Temperature.
