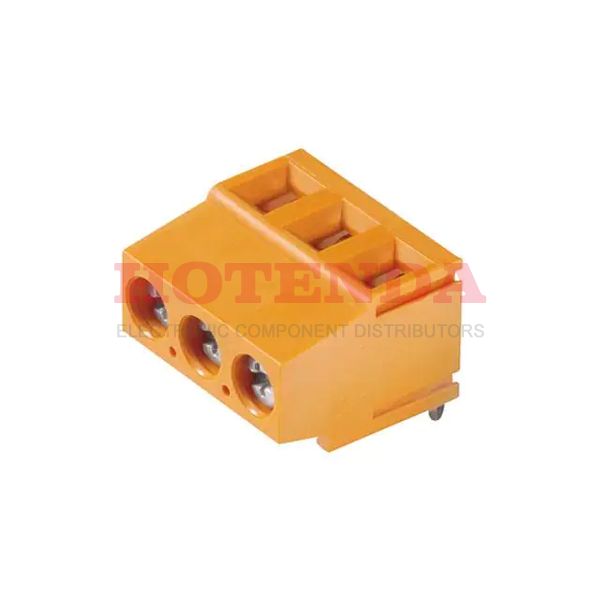

Name: 1715270000
Brand: Weidmüller
SKU: 1715270000
Price: 0.49000 USD
Availability: InStock

new-10%

1715270000

Manufacturer part number:1715270000

Manufacturer:Weidmüller

Description:0.197 5.00mm Black Bulk Thermoplastic, Wemid Through Hole Vertical with Board Screw - Clamping Yoke, Tension Sleeve 1 Levels 14-24 AWG Omnimate LM

Case Package:SOT-23

Datasheet:1715270000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Thermoplastic, Wemid
Contact Material - Plating	Copper Alloy - Tin Plated
Operating Temperature	-50°C~120°C
Packaging	Bulk
Series	Omnimate LM
Published	2008
Feature	Interlocking (Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Screw
ECCN Code	EAR99
Color	Black
Number of Rows	1
Additional Feature	LOW PROFILE
HTS Code	8536.69.40.40
Pitch	0.197 5.00mm
Orientation	Right Angle
Number of Contacts	2
Wire Gauge	14-24 AWG
Voltage	300V
Number of Levels	1
Current	20A
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	14 AWG
Number of Decks	1
Terminal and Terminal Block Type	MODULAR TERMINAL BLOCK
Torque - Screw	0.4-0.5 Nm (3.5-4.4 Lb-In)
Number of Ways	2
Safety Approval	UL; VDE; CSA
Mating Orientation	Vertical with Board
Wire Termination	Screw - Clamping Yoke, Tension Sleeve
Screw Thread	M2.5
Height	10mm
Length	10mm
Width	13.8mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1715270000 Product Details

1715270000 Overview

Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the Omnimate LM Series of products.Additionally, there are other features, such as LOW PROFILE.A number of features make it more powerful because of its Interlocking (Side) feature.Through Hole mounts the part.There is no operating temperature for the device.
