Name: 1960210000
Brand: Weidmüller
SKU: 1960210000
Price: 4.33000 USD
Availability: InStock

new-10%

1960210000

Manufacturer part number:1960210000

Manufacturer:Weidmüller

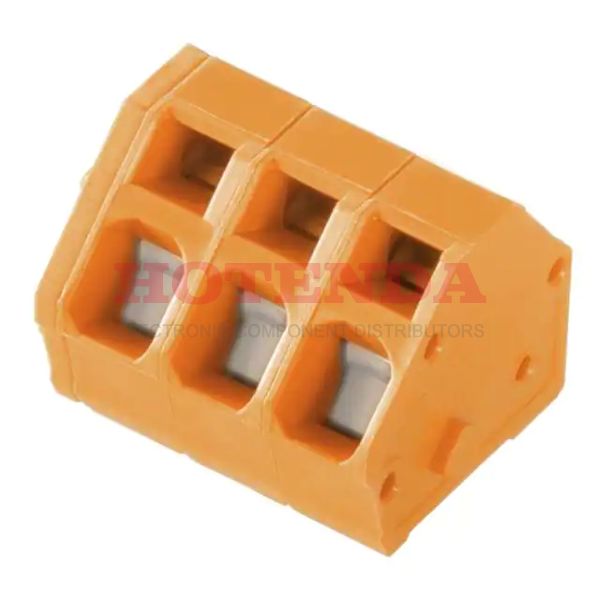

Description:0.197 5.00mm Orange Bulk Thermoplastic, Wemid Through Hole 45° (135°) Angle with Board Screwless - Spring Cage, Tension Clamp 1 Levels 14-26 AWG Omnimate LMZF

Case Package:SOT-23

Datasheet:1960210000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Contact Material	Copper
Contact Plating	Copper, Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Thermoplastic, Wemid
Contact Material - Plating	Electrolytic Copper - Tin Plated
Operating Temperature	-50°C~120°C
Packaging	Bulk
Series	Omnimate LMZF
Feature	Interlocking (Side)
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Color	Orange
Number of Rows	1
Voltage - Rated	300V
Additional Feature	STANDARD: UL 94V-0, PA
HTS Code	8536.69.40.40
Pitch	0.197 5.00mm
Current Rating	10A
Approval Agency	cURus
Wire Gauge	14-26 AWG
Number of Levels	1
Current	15A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	14 AWG
Number of Decks	1
Terminal and Terminal Block Type	STRIP TERMINAL BLOCK
Number of Ways	20
Safety Approval	UL; CSA
Mating Orientation	45° (135°) Angle with Board
Wire Termination	Screwless - Spring Cage, Tension Clamp
Hole Diameter	1.3 mm
Number of Positions Per Level	20
Stripping Length	6mm
Wire Cross Section	2.5 mm2
Fastening Method	SPRING LOADED
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1960210000 Product Details

1960210000 Overview

The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the Omnimate LMZF Series of products.In addition, there are other features such as STANDARD: UL 94V-0, PA, to mention only a few.Its Interlocking (Side) feature renders it more powerful in many ways.The part is mounted by Through Hole.The device runs in -50°C~120°C Operating Temperature.
