1764820000

Manufacturer part number:1764820000

Manufacturer:Weidmüller

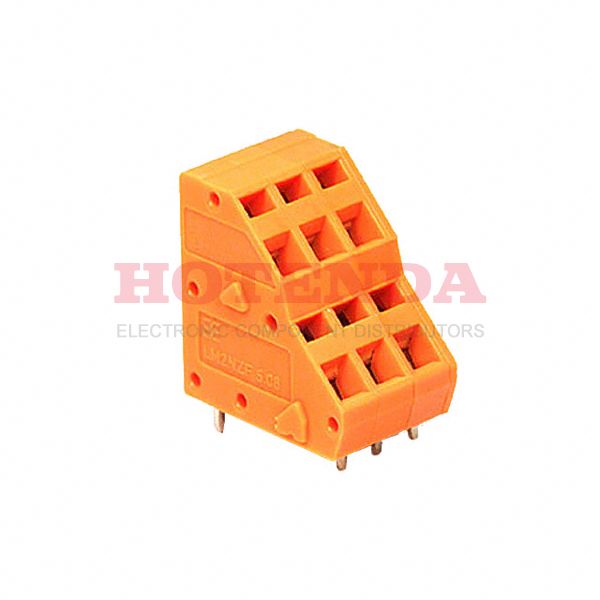

Description:0.200 5.08mm Orange Bulk Polyamide (PA), Nylon Through Hole 45° (135°) Angle with Board Screwless - Spring Cage, Tension Clamp 2 Levels 14-24 AWG Omnimate LMZF

Case Package:SOT-23

Datasheet:1764820000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Insulation Material	Nylon
Housing Material	Polyamide (PA), Nylon
Contact Material - Plating	Copper Alloy - Tin Plated
Operating Temperature	-50°C~100°C
Packaging	Bulk
Series	Omnimate LMZF
Published	2005
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Screwless
Number of Positions	6
Max Operating Temperature	100°C
Min Operating Temperature	-50°C
Color	Orange
Number of Rows	2
Voltage - Rated	300V
Pitch	0.200 5.08mm
Current Rating	10A
Number of Contacts	6
Housing Color	Orange
Wire Gauge	14-24 AWG
Voltage	300V
Number of Circuits	6
Number of Levels	2
Current	10A
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	14 AWG
Number of Poles	6
Positions Per Level	3
Mating Orientation	45° (135°) Angle with Board
Wire Termination	Screwless - Spring Cage, Tension Clamp
Hole Diameter	1.3 mm
Number of Positions Per Level	3
Stripping Length	7.5mm
Height	51.2mm
Width	48.1mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-2
Lead Free	Lead Free

1764820000 Product Details

1764820000 Overview

Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the Omnimate LMZF Series.Use it when the temperature is below 100°C.Temperatures below -50°C are required for this device to operate.It is mounted by Through Hole.It has 6 circuits.It operates at an operating temperature of -50°C~100°C.
