Name: 1792950000
Brand: Weidmüller
SKU: 1792950000
Price: 1.32000 USD
Availability: InStock

new-10%

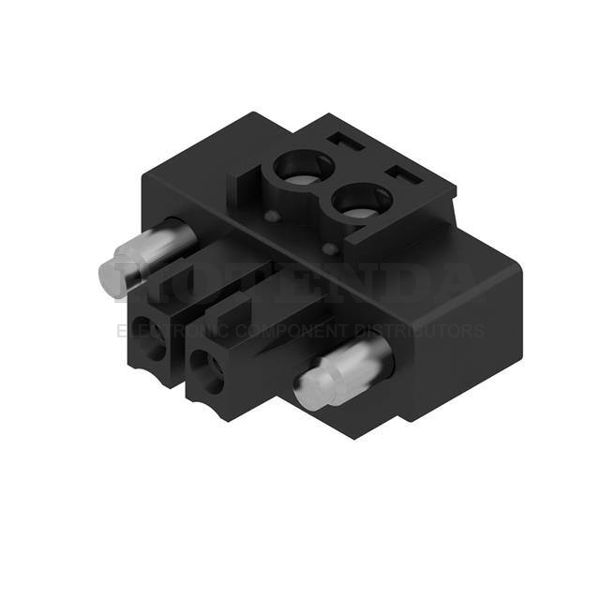

1792950000

Manufacturer part number:1792950000

Manufacturer:Weidmüller

Description:1792950000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1792950000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Free Hanging, Panel
Mounting Type	Free Hanging (In-Line)
Insulation Material	Nylon
Housing Material	Polyamide (PA), Nylon, Glass Filled
Operating Temperature	-50°C~120°C
Packaging	Bulk
Published	2004
Series	Omnimate BC
JESD-609 Code	e3
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Termination	Screw
Connector Type	Terminal Block
Type	Plug, Female Sockets
Color	Black
Number of Rows	1
Voltage - Rated	300V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.150 3.81mm
Total Number of Contacts	2
Orientation	Right Angle
Ingress Protection	IP20
Depth	15.5mm
Insulation Height	0.437 11.10mm
Current Rating	17.5A
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Approval Agency	CSA, cURus
UL Flammability Code	94V-0
Voltage	300V
Max Supply Voltage	300V
Max Current Rating	10A
Number of Levels	1
Current	10A
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	16 AWG
Wire/Cable Gauge	28 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	16-28 AWG
Voltage - IEC	320V
Torque - Screw	0.2-0.25 Nm (1.7-2.2 Lb-In)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-1.5mm2
Current - IEC	17.5A
Number of Positions Per Level	2
Screw Size	M2
Stripping Length	7mm
Length	18.01mm
Width	15.5mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1792950000 Product Details

1792950000 Overview

This product is packaged in a Terminal Block carton.This device's mounting type is Free Hanging (In-Line).In order to package the product, a Bulk case is used.A member of the Omnimate BC Series.A number of advantages are provided by its Mating Flange feature.There is a Free Hanging, Panel mount on the part.The device is operating at -50°C~120°C Operating Temperature.It is recommended that the supply voltage of this chip not exceed 300V.Compared to other Plug, Female Sockets products, this part has a lot of benefits to offer.
