XC2VP7-6FF672C

XC2VP7-6FF672C

XC2VP7-6FF672C

Xilinx Inc.

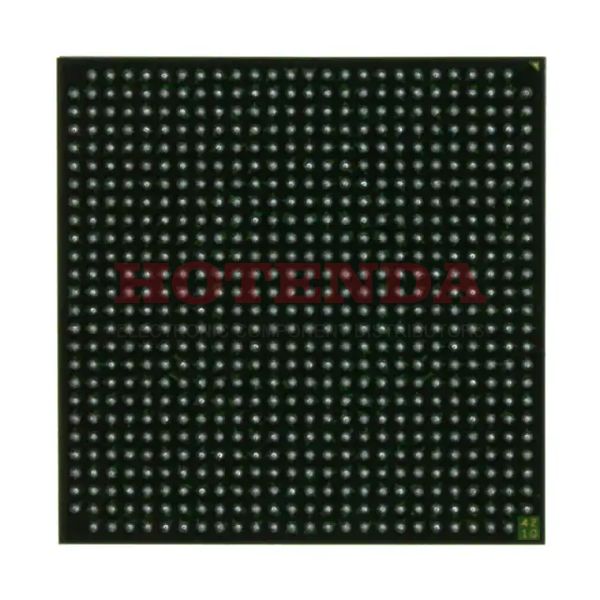

1.5V V FPGAs Virtex?-II Pro Series 672-BBGA, FCBGA 1mm mm 672

SOT-23

XC2VP7-6FF672C Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 6 Weeks
Mounting Type Surface Mount
Package / Case 672-BBGA, FCBGA
Surface MountYES
Operating Temperature0°C~85°C TJ
PackagingBulk
Published 2011
Series Virtex®-II Pro
JESD-609 Code e0
Pbfree Code no
Part StatusObsolete
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Number of Terminations 672
ECCN Code 3A991.D
HTS Code8542.39.00.01
Subcategory Field Programmable Gate Arrays
Technology CMOS
Voltage - Supply 1.425V~1.575V
Terminal Position BOTTOM
Terminal FormBALL
Peak Reflow Temperature (Cel) 225
Supply Voltage 1.5V
Terminal Pitch1mm
[email protected] Reflow Temperature-Max (s) 30
Pin Count672
Number of Outputs 396
Qualification StatusNot Qualified
Operating Supply Voltage1.5V
Power Supplies1.51.5/3.32/2.52.5V
Number of I/O 396
RAM Size 99kB
Clock Frequency 1200MHz
Number of Inputs 396
Programmable Logic TypeFIELD PROGRAMMABLE GATE ARRAY
Number of Logic Elements/Cells 11088
Total RAM Bits 811008
Number of LABs/CLBs 1232
Speed Grade 6
Number of Registers 9856
Combinatorial Delay of a CLB-Max 0.32 ns
Length 27mm
Width 27mm
RoHS StatusNon-RoHS Compliant
In-Stock:1305 items

Pricing & Ordering

QuantityUnit PriceExt. Price
40$421.00150$16840.06

XC2VP7-6FF672C Product Details

XC2VP7-6FF672C Overview


As part of the 672-BBGA, FCBGA package, it is included. There are FIELD PROGRAMMABLE GATE ARRAY transistors in this type of FPGA. There are 396 I/Os for better data transfer. In order to construct a fundamental building block, 11088 logic elements/cells are required. Supply voltage is 1.5V volts. There is a Field Programmable Gate Arrays family component in this FPGA part. With a Surface Mount connector, this FPGA module can be attached to the development board. There is a 1.425V~1.575V-volt supply voltage required for the device to operate. The Virtex?-II Pro series FPGA is a type of FPGA that belongs to the Virtex?-II Pro family of FPGAs. As far as the operating temperature is concerned, it should be kept within 0°C~85°C TJ when operating. This device is equipped with 396 separate outputs, which makes it a very versatile device. Unlike other FPGA models, this one is contained in Bulk for the sake of space saving. In total, the terminations of this piece are 672. As far as the RAM bits are concerned, this device offers you a total of 811008. Fpga electronics is important that this FPGA module has a RAM si99kBe of 99kB in order to ensure that the program will run normally. Fpga electronics contains 1232 LABs/CLBs in an array. Designers can fully utilize its flexibility with 1.5V supply voltage. In order for fpga electronics to work, fpga electronics requires a 1.51.5/3.32/2.52.5V power supply. In addition to this, it has 672 pins. Typically, fpga semiconductor uses a crystal oscillating at 1200MHz . The registers used in the transfer of and storage of data are 9856 in number.

XC2VP7-6FF672C Features


396 I/Os
Up to 811008 RAM bits
9856 registers

XC2VP7-6FF672C Applications


There are a lot of Xilinx Inc. XC2VP7-6FF672C FPGAs applications.

  • Wireless Communications
  • Server Applications
  • Defense Applications
  • Computer hardware emulation
  • Security systems
  • Bioinformatics
  • Data center search engines
  • Industrial,Medical and Scientific Instruments
  • Voice recognition
  • Camera time adjustments
