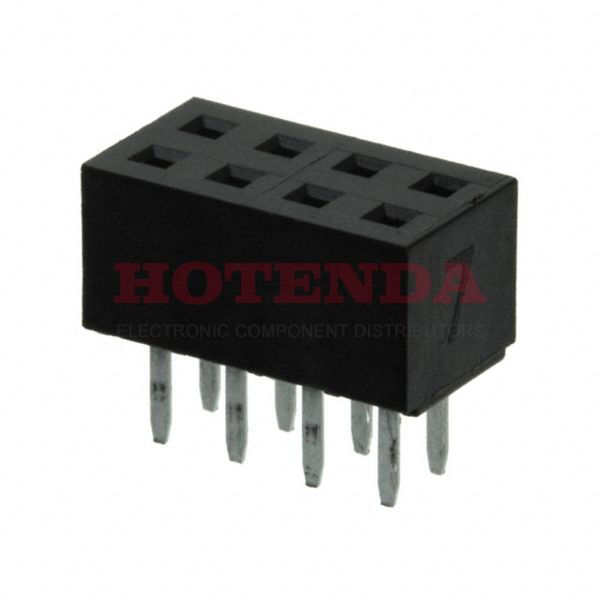

Name: 950408-6102-AR
Brand: 3M
SKU: 950408-6102-AR
Availability: InStock

new-10%

950408-6102-AR

Manufacturer part number:950408-6102-AR

Manufacturer:3M

Description:2 Rows Receptacle Solder Copper Alloy Through Hole Tube Gold Thermoplastic 8 Positions Female Socket

Case Package:SOT-23

Datasheet:950408-6102-AR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	9 Weeks
Contact Material	Copper Alloy
Contact Plating	Gold
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Thermoplastic
Housing Material	Thermoplastic
Operating Temperature	-40°C~105°C
Packaging	Tube
Published	2008
Series	950
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Receptacle
Number of Positions	8
Color	Black
Number of Rows	2
Gender	Receptacle
Voltage - Rated	1000V
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Type	Female Socket
Current Rating (Amps)	1A
Pitch	2mm
Insulation Height	0.169 4.30mm
Style	Board to Board
Number of Positions Loaded	All
Current Rating	1A
Pitch - Mating	0.079 2.00mm
Insulation Color	Black
Row Spacing - Mating	0.079 (2.00mm)
Contact Length - Post	0.106 2.69mm
Number of Contacts	8
Contact Finish - Post	Tin
Contact Gender	Female
Lead Length	2.7mm
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	40.0μin 1.02μm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

950408-6102-AR Product Details

950408-6102-AR Overview

The product comes in a package of Receptacle.Through Hole is the type of mounting for the device.To package the product, a Tube case is used.The product is a member of the 950 Series.It is mounted by Through Hole.It operates at an operating temperature of -40°C~105°C.
