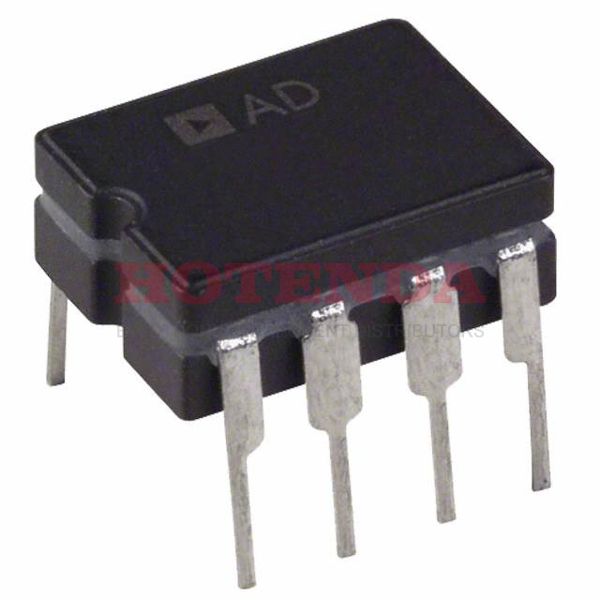

AD708BQ Overview
There is a 8-CDIP (0.300, 7.62mm) case package that contains the instrumentation amplifiers. There are two types of operational amplifiers in this circuit. In the case of Tube cases, linear amplifier will be delivered. We are approaching the 8h termination of the year. The total number of pins on linear amplifier is 8. Please take in mind that op amp should be run at 15V. To be specific, this instrumentation amplifier is a type of Operational Amplifier. There are 8 pins on this chip. In terms of the input offset voltage, instrumentation amplifier rates at 30μV. This electronic component is recommended to be mounted using the mounting type Through Hole. According to the manufacturer, this buffer op amp works well at -40°C~85°C , which is a good operating temperature. Operational amplifier can operate supply current at 5.5mA. 140dB should be the voltage gain. There are 2 channels on the operational amplifiers. Buffer amplifier has a quiescent current of 2.75mA.
AD708BQ Features
8 Pins
supply voltage of 15V
140dB voltage gain
AD708BQ Applications
There are a lot of Analog Devices Inc. AD708BQ Instrumentational OP Amps applications.
- Instrumentation
- Logarithmic operation circuits
- Automation control systems
- Home audio systems
- Radar
- Laptop
- Voltage regulation circuit
- Fission chambers
- Biopotential
- Oscilloscopes
