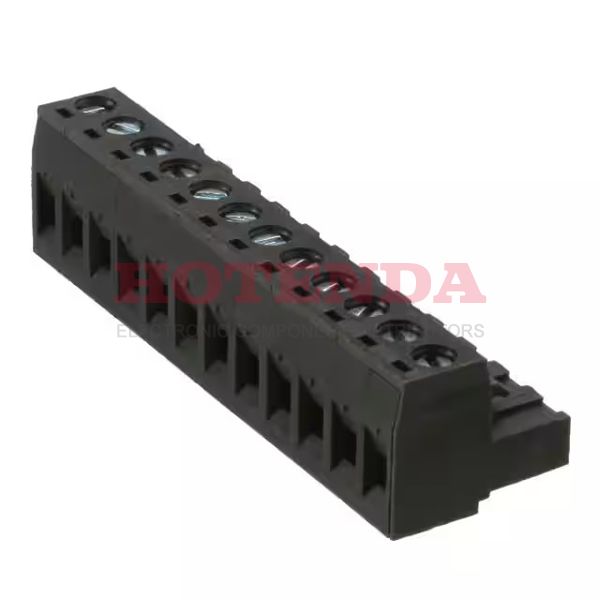

0395300012

0395300012

0395300012

Molex

0395300012 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Molex stock available on our website

SOT-23

0395300012 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 12 Weeks
Contact MaterialCopper Alloy
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Operating Temperature-40°C~115°C
PackagingBulk
Series Eurostyle ESE 39530
Feature Retention Latches (Non-Wire Side)
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Plug, Female Sockets
Number of Positions 12
Color Black
Pitch 0.200 5.08mm
Insulation Height 0.591 15.00mm
Termination Style Screw - Rising Cage Clamp
Number of Levels 1
Contact Mating Finish Tin
Voltage - UL 300V
Wire Gauge or Range - AWG 12-26 AWG
Current - UL 15A
Torque - Screw 0.56 Nm (5.0 Lb-In)
Positions Per Level 12
Plug Wire Entry 180°
Wire Strip Length 5mm
Screw Size M3
RoHS StatusROHS3 Compliant
In-Stock:1054 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$8.332845$8.332845
10$7.861175$78.61175
100$7.416203$741.6203
500$6.996417$3498.2085
1000$6.600394$6600.394

0395300012 Product Details

0395300012 Overview


There is a Free Hanging (In-Line) mounting type for the device.Packaging the product involves using a Bulk case.This is from the Eurostyle ESE 39530 Series.A number of aspects of its Retention Latches (Non-Wire Side) feature make it more powerful.As a result, the device runs at -40°C~115°C Operating Temperature.In addition to its benefits, this part also shares many with the other products in the Plug, Female Sockets series.

0395300012 Features


Eurostyle ESE 39530 series

0395300012 Applications


There are a lot of Molex 0395300012 Terminal Blocks applications.

  • Telecommunications
  • Data Technology
  • Anywhere power is distributed
  • All Electrical Machinery
  • Measuring & Control Technology
  • Embedded systems
  • Datacom
  • Automotive Electronics
  • Refrigeration control
  • Transportation
