Name: 0705450071
Brand: Molex
SKU: 0705450071
Price: 1.26000 USD
Availability: InStock

new-10%

0705450071

Manufacturer part number:0705450071

Manufacturer:Molex

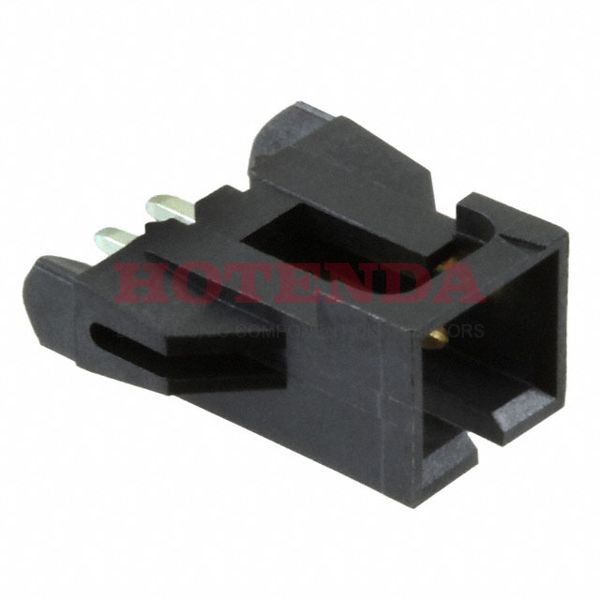

Description:SL 70545 Series 1-Row Header Solder Phosphor Bronze Tube Through Hole Gold Polyester, Glass Filled 2-Position Board to Cable/Wire 0.465 11.80mm Height

Case Package:SOT-23

Datasheet:0705450071 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	5 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Polyester, Glass Filled
Operating Temperature	-40°C~105°C
Packaging	Tube
Series	SL 70545
JESD-609 Code	e3
Feature	Board Guide
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Header
Number of Positions	2
Applications	Automotive, General Purpose, Industrial, Medical
Number of Rows	1
Voltage - Rated	250V
Additional Feature	POLARIZED, SHROUDED
HTS Code	8536.69.40.40
Fastening Type	Latch Holder
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Insulation Height	0.465 11.80mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Contact Length - Post	0.130 3.30mm
Shrouding	Shrouded - 4 Wall
Contact Finish - Post	Tin
Contact Length - Mating	0.240 6.10mm
UL Flammability Code	94V-0
Overall Contact Length	0.470 11.94mm
Contact Finish Thickness - Mating	30.0μin 0.76μm
Contact Finish Thickness - Post	74.8μin 1.90μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0705450071 Product Details

0705450071 Overview

This product is packaged in a Header box.Through Hole indicates that the device is mounted.An Tube case is utilized for packaging the product.The product is a part of the SL 70545 Series.Furthermore, there are other features such as POLARIZED, SHROUDED, to name a few.There is the possibility of using the device for Automotive, General Purpose, Industrial, Medical.In many ways, Board Guide makes it more powerful.Operating temperature is set to -40°C~105°C.
