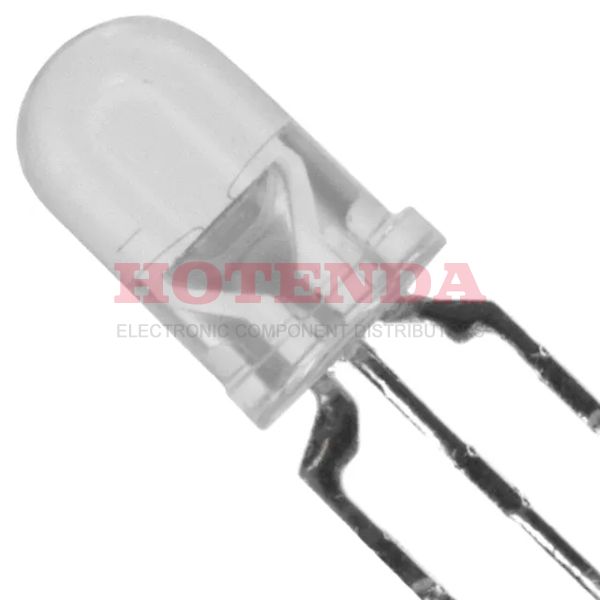

WP59GYW datasheet pdf and LED Indication - Discrete product details from Kingbright stock available on our website
SOT-23
WP59GYW Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
12 Weeks
Mount
Through Hole
Mounting Type
Through Hole
Package / Case
Radial - 3 Leads
Number of Pins
5
Packaging
Bulk
Published
2007
Pbfree Code
yes
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Number of Terminations
3
ECCN Code
EAR99
Color
Green, Yellow
Additional Feature
IC COMPATIBLE, HIGH RELIABILITY
Number of Functions
1
Operating Temperature (Min)
-40°C
Configuration
Common Cathode
Voltage - Forward (Vf) (Typ)
2.2V Green 2.1V Yellow
Viewing Angle
60°
Optoelectronic Device Type
DUAL COLOR LED
Current - Test
20mA Green 20mA Yellow
Lens Style
Round with Domed Top
Lens Size
5mm T-1 3/4
Luminous Intensity
40 mcd
Millicandela Rating
50mcd Green, 40mcd Yellow
Illumination Color
Green, Yellow
Lens Transparency
Diffused
Wavelength - Peak
565nm Green 590nm Yellow
Lens Color
White
Forward Current-Max
0.03A
Wavelength - Dominant
568nm Green 588nm Yellow
Number of LEDs
1
Height
8.6mm
RoHS Status
ROHS3 Compliant
Lead Free
Lead Free
In-Stock:15508 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$0.419415
$0.419415
10
$0.395675
$3.95675
100
$0.373277
$37.3277
500
$0.352148
$176.074
1000
$0.332216
$332.216
WP59GYW Product Details
The Kingbright WP59GYW LED Indication - Discrete is a green/yellow dual-color LED with a T-1 3/4 (5mm) through-hole package. It is designed for use in a variety of applications, including automotive, industrial, and consumer electronics. The LED has a wide viewing angle of 120° and a luminous intensity of up to 10,000 mcd. It is also RoHS compliant and has a long life expectancy of up to 100,000 hours.
Features of the Kingbright WP59GYW LED Indication - Discrete include: • Dual-color LED with green/yellow output • T-1 3/4 (5mm) through-hole package • Wide viewing angle of 120° • Luminous intensity of up to 10,000 mcd • RoHS compliant • Long life expectancy of up to 100,000 hours
Applications of the Kingbright WP59GYW LED Indication - Discrete include: • Automotive • Industrial • Consumer electronics • Signal and status indication • Lighting and illumination • Backlighting • Automated equipment
