Name: DMG4N65CTI
Brand: Diodes Incorporated
SKU: DMG4N65CTI
Availability: InStock

new-10%

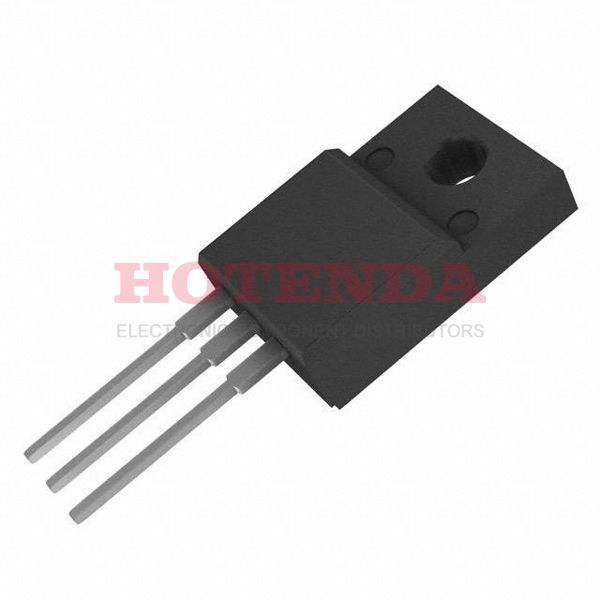

DMG4N65CTI

Manufacturer part number:DMG4N65CTI

Manufacturer:Diodes Incorporated

Description:MOSFET N-CH 650V 4A ITO-220AB

Case Package:SOT-23

Datasheet:DMG4N65CTI Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	TO-220-3 Full Pack, Isolated Tab
Number of Pins	3
Weight	2.299997g
Transistor Element Material	SILICON
Operating Temperature	-55°C~150°C TJ
Packaging	Tube
Published	2012
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
Terminal Finish	Matte Tin (Sn)
Additional Feature	HIGH RELIABILITY
Subcategory	FET General Purpose Power
Technology	MOSFET (Metal Oxide)
Terminal Position	SINGLE
Pin Count	3
Number of Elements	1
Configuration	SINGLE WITH BUILT-IN DIODE
Number of Channels	1
Power Dissipation-Max	8.35W Ta
Operating Mode	ENHANCEMENT MODE
Turn On Delay Time	15.1 ns
FET Type	N-Channel
Transistor Application	SWITCHING
Rds On (Max) @ Id, Vgs	3 Ω @ 2A, 10V
Vgs(th) (Max) @ Id	5V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds	900pF @ 25V
Current - Continuous Drain (Id) @ 25°C	4A Tc
Gate Charge (Qg) (Max) @ Vgs	13.5nC @ 10V
Rise Time	13.8ns
Drive Voltage (Max Rds On,Min Rds On)	10V
Vgs (Max)	±30V
Fall Time (Typ)	16 ns
Turn-Off Delay Time	40 ns
Continuous Drain Current (ID)	4A
JEDEC-95 Code	TO-220AB
Gate to Source Voltage (Vgs)	30V
Drain Current-Max (Abs) (ID)	4A
Drain-source On Resistance-Max	3Ohm
Drain to Source Breakdown Voltage	650V
Pulsed Drain Current-Max (IDM)	6A
Avalanche Energy Rating (Eas)	456 mJ
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant

About DMG4N65CTI

The DMG4N65CTI from Diodes Incorporated is a high-performance microcontroller designed for a wide range of embedded applications. This component features MOSFET N-CH 650V 4A ITO-220AB.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the DMG4N65CTI, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
