Name: 14020814402000
Brand: HARTING
SKU: 14020814402000
Price: 3.55000 USD
Availability: InStock

new-10%

14020814402000

Manufacturer part number:14020814402000

Manufacturer:HARTING

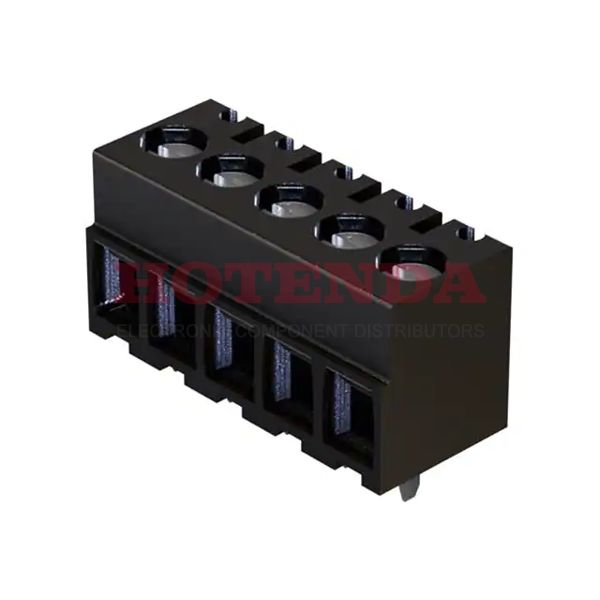

Description:0.138 3.50mm Black Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw 1 Levels 16-28 AWG har-flexicon®

Case Package:SOT-23

Datasheet:14020814402000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	13 Weeks
Contact Material	Copper
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Contact Material - Plating	Copper Alloy - Tin Plated
Operating Temperature	-40°C~110°C
Packaging	Bulk
Series	har-flexicon®
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Positions	8
Color	Black
Voltage - Rated	150V
Pitch	0.138 3.50mm
Orientation	Horizontal
Current Rating	12A
Wire Gauge	16-28 AWG
Voltage	300V
Number of Levels	1
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	16 AWG
Wire/Cable Gauge	28 AWG
Torque - Screw	0.2-0.25 Nm (1.7-2.2 Lb-In)
Positions Per Level	8
Mating Orientation	Horizontal with Board
Wire Termination	Screw
Screw Thread	M2
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

14020814402000 Product Details

14020814402000 Overview

Mounting type Through Hole is selected for the device.Packaged in a Bulk case.A member of the har-flexicon® Series.There's a Through Hole mount on the part.Device runs in -40°C~110°C operating temperature.
