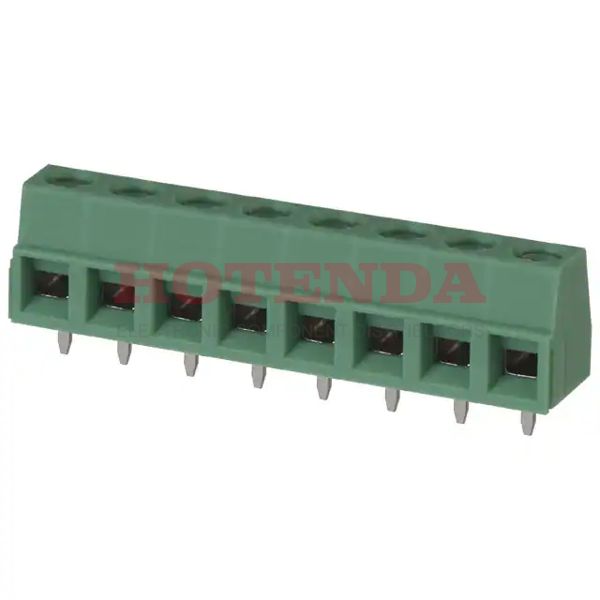

Name: 1729186
Brand: Phoenix Contact
SKU: 1729186
Price: 4.66000 USD
Availability: InStock

new-10%

1729186

Manufacturer part number:1729186

Manufacturer:Phoenix Contact

Description:0.200 5.08mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 14-30 AWG COMBICON MKDSN

Case Package:SOT-23

Datasheet:1729186 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Tin
Mount	Through Hole
Mounting Type	Through Hole
Insulation Material	Nylon
Housing Material	Polyamide (PA), Nylon
Weight	7.660013g
Packaging	Bulk
Series	COMBICON MKDSN
Published	2001
Feature	Interlocking (Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Max Operating Temperature	100°C
Min Operating Temperature	-40°C
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PA, 94V-0
Pitch	0.200 5.08mm
Orientation	Straight
Depth	8.1mm
Current Rating	13.5A
Voltage - Rated AC	250V
Approval Agency	CB, CSA, UL, cULus
Lead Pitch	5.08mm
Number of Contacts	8
Wire Gauge	14-30 AWG
Voltage	300V
Max Supply Voltage	250V
Max Current Rating	13.5A
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	26 AWG
Wire/Cable Gauge	26 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	8
Safety Approval	UL
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Stripping Length	6mm
Test Voltage	4kV
Height	13.5mm
Length	40.64mm
Width	40.64mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1729186 Product Details

1729186 Overview

This product is packaged in a Screw box.Through Hole indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the COMBICON MKDSN Series.Furthermore, there are other features such as PA, 94V-0, to name a few.Use it below 100°C.A minimum temperature of -40°C must be maintained for the operation of this device.In many ways, Interlocking (Side) makes it more powerful.By Through Hole, the part is mounted.A supply voltage of 250V should not be exceeded by this chip.
