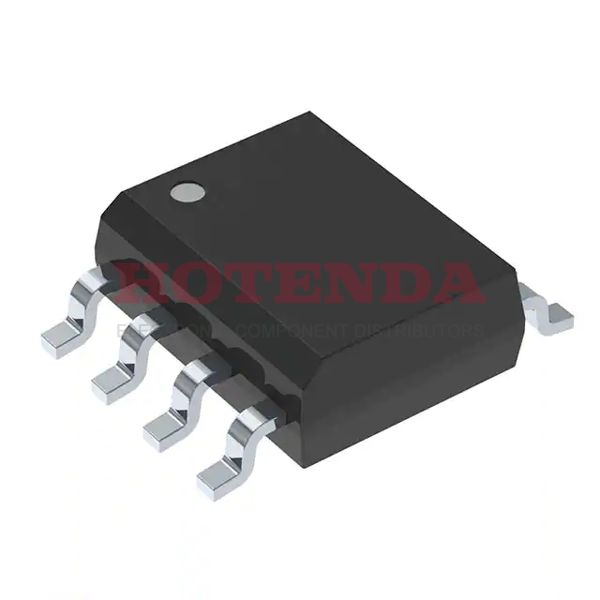

Name: BSO613SPVGHUMA1
Brand: Infineon Technologies
SKU: BSO613SPVGHUMA1
Availability: InStock

new-10%

BSO613SPVGHUMA1

Manufacturer part number:BSO613SPVGHUMA1

Manufacturer:Infineon Technologies

Description:MOSFET P-CH 60V 3.44A 8DSO

Case Package:SOT-23

Datasheet:BSO613SPVGHUMA1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	26 Weeks
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154, 3.90mm Width)
Number of Pins	8
Transistor Element Material	SILICON
Manufacturer Package Identifier	PG-SO 8
Operating Temperature	-55°C~150°C TJ
Packaging	Tape & Reel (TR)
Published	1999
Series	SIPMOS®
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	8
ECCN Code	EAR99
Additional Feature	AVALANCHE RATED
Voltage - Rated DC	-60V
Technology	MOSFET (Metal Oxide)
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Current Rating	-3.44A
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
Pin Count	8
Qualification Status	Not Qualified
Number of Elements	1
Configuration	SINGLE WITH BUILT-IN DIODE
Number of Channels	1
Power Dissipation-Max	2.5W Ta
Operating Mode	ENHANCEMENT MODE
Power Dissipation	2.5W
Turn On Delay Time	10 ns
FET Type	P-Channel
Rds On (Max) @ Id, Vgs	130m Ω @ 3.44A, 10V
Vgs(th) (Max) @ Id	4V @ 1mA
Halogen Free	Not Halogen Free
Input Capacitance (Ciss) (Max) @ Vds	875pF @ 25V
Current - Continuous Drain (Id) @ 25°C	3.44A Ta
Gate Charge (Qg) (Max) @ Vgs	30nC @ 10V
Rise Time	11ns
Drain to Source Voltage (Vdss)	60V
Drive Voltage (Max Rds On,Min Rds On)	10V
Vgs (Max)	±20V
Turn-Off Delay Time	32 ns
Continuous Drain Current (ID)	-3.44A
Threshold Voltage	-3V
Gate to Source Voltage (Vgs)	20V
Max Dual Supply Voltage	-60V
Drain to Source Breakdown Voltage	-60V
Height	1.75mm
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Lead Free	Lead Free

About BSO613SPVGHUMA1

The BSO613SPVGHUMA1 from Infineon Technologies is a high-performance microcontroller designed for a wide range of embedded applications. This component features MOSFET P-CH 60V 3.44A 8DSO.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the BSO613SPVGHUMA1, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
