Name: IPD30N06S223ATMA1
Brand: Infineon Technologies
SKU: IPD30N06S223ATMA1
Availability: InStock

new-10%

IPD30N06S223ATMA1

Manufacturer part number:IPD30N06S223ATMA1

Manufacturer:Infineon Technologies

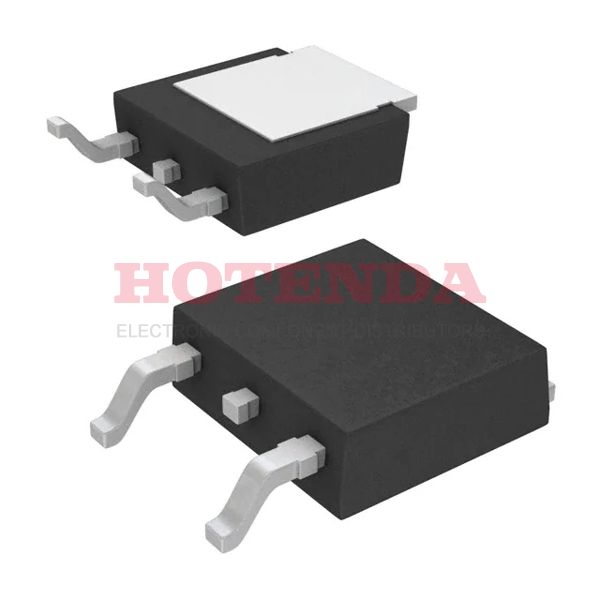

Description:MOSFET N-CH 55V 30A TO252-3

Case Package:SOT-23

Datasheet:IPD30N06S223ATMA1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
Surface Mount	YES
Transistor Element Material	SILICON
Operating Temperature	-55°C~175°C TJ
Packaging	Tape & Reel (TR)
Published	2006
Series	OptiMOS™
Part Status	Discontinued
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Technology	MOSFET (Metal Oxide)
Terminal Position	SINGLE
Terminal Form	GULL WING
JESD-30 Code	R-PSSO-G2
Number of Elements	1
Configuration	SINGLE WITH BUILT-IN DIODE
Power Dissipation-Max	100W Tc
Operating Mode	ENHANCEMENT MODE
Case Connection	DRAIN
FET Type	N-Channel
Rds On (Max) @ Id, Vgs	23m Ω @ 21A, 10V
Vgs(th) (Max) @ Id	4V @ 50μA
Input Capacitance (Ciss) (Max) @ Vds	901pF @ 25V
Current - Continuous Drain (Id) @ 25°C	30A Tc
Gate Charge (Qg) (Max) @ Vgs	32nC @ 10V
Drain to Source Voltage (Vdss)	55V
Drive Voltage (Max Rds On,Min Rds On)	10V
Vgs (Max)	±20V
Drain Current-Max (Abs) (ID)	30A
Drain-source On Resistance-Max	0.023Ohm
Pulsed Drain Current-Max (IDM)	120A
DS Breakdown Voltage-Min	55V
Avalanche Energy Rating (Eas)	150 mJ
RoHS Status	ROHS3 Compliant
