Name: IPD50R800CEATMA1
Brand: Infineon Technologies
SKU: IPD50R800CEATMA1
Availability: InStock

new-10%

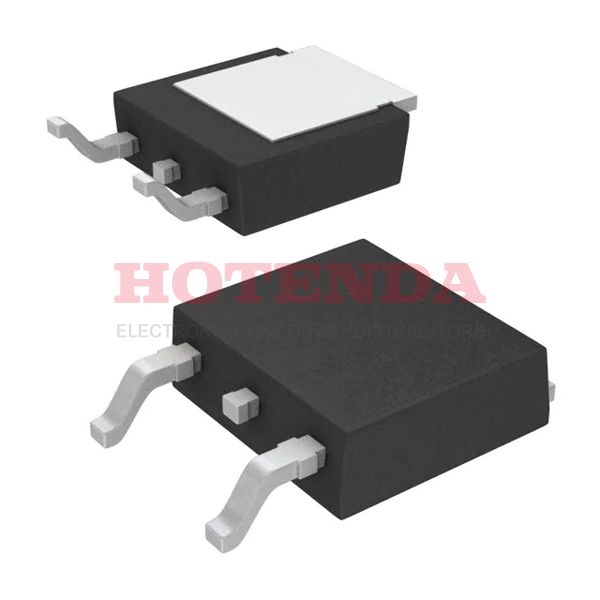

IPD50R800CEATMA1

Manufacturer part number:IPD50R800CEATMA1

Manufacturer:Infineon Technologies

Description:Trans MOSFET N-CH 500(Min)V 5A 3-Pin TO-252 T/R

Case Package:SOT-23

Datasheet:IPD50R800CEATMA1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
Number of Pins	3
Supplier Device Package	PG-TO252-3
Operating Temperature	-55°C~150°C TJ
Packaging	Tape & Reel (TR)
Published	2012
Series	CoolMOS™ CE
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Max Operating Temperature	150°C
Min Operating Temperature	-55°C
Technology	MOSFET (Metal Oxide)
Power Dissipation-Max	60W Tc
Turn On Delay Time	6.2 ns
FET Type	N-Channel
Rds On (Max) @ Id, Vgs	800mOhm @ 1.5A, 13V
Vgs(th) (Max) @ Id	3.5V @ 130μA
Input Capacitance (Ciss) (Max) @ Vds	280pF @ 100V
Current - Continuous Drain (Id) @ 25°C	5A Tc
Gate Charge (Qg) (Max) @ Vgs	12.4nC @ 10V
Rise Time	5.5ns
Drain to Source Voltage (Vdss)	500V
Drive Voltage (Max Rds On,Min Rds On)	13V
Vgs (Max)	±20V
Fall Time (Typ)	15.9 ns
Turn-Off Delay Time	26 ns
Continuous Drain Current (ID)	5A
Gate to Source Voltage (Vgs)	20V
Input Capacitance	280pF
Rds On Max	800 mΩ
RoHS Status	RoHS Compliant
