Name: IRF5806TRPBF
Brand: Infineon Technologies
SKU: IRF5806TRPBF
Availability: InStock

new-10%

IRF5806TRPBF

Manufacturer part number:IRF5806TRPBF

Manufacturer:Infineon Technologies

Description:IRF5806TRPBF datasheet pdf and Transistors - FETs, MOSFETs - Single product details from Infineon Technologies stock available on our website

Case Package:SOT-23

Datasheet:IRF5806TRPBF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	18 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount

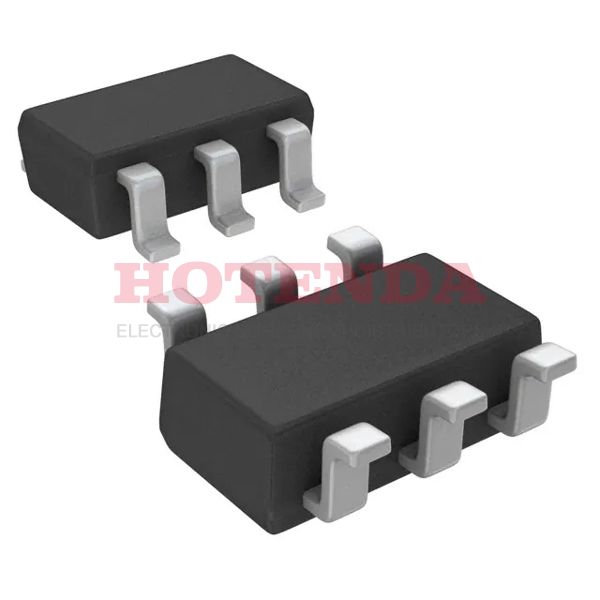

Package / Case	SOT-23-6 Thin, TSOT-23-6
Number of Pins	6
Operating Temperature	-55°C~150°C TJ
Packaging	Tape & Reel (TR)
Published	2005
Series	HEXFET®
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	SMD/SMT
ECCN Code	EAR99
Resistance	86MOhm
Terminal Finish	Matte Tin (Sn)
Subcategory	Other Transistors
Technology	MOSFET (Metal Oxide)
Number of Elements	1
Power Dissipation-Max	2W Ta
Element Configuration	Single
Operating Mode	ENHANCEMENT MODE
Power Dissipation	2W
Turn On Delay Time	6.2 ns
FET Type	P-Channel
Rds On (Max) @ Id, Vgs	86m Ω @ 4A, 4.5V
Vgs(th) (Max) @ Id	1.2V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds	594pF @ 15V
Current - Continuous Drain (Id) @ 25°C	4A Ta
Gate Charge (Qg) (Max) @ Vgs	11.4nC @ 4.5V
Rise Time	27ns
Drive Voltage (Max Rds On,Min Rds On)	2.5V 4.5V
Vgs (Max)	±20V
Fall Time (Typ)	126 ns
Turn-Off Delay Time	94 ns
Continuous Drain Current (ID)	-4A
Threshold Voltage	-1.2V
Gate to Source Voltage (Vgs)	20V
Drain Current-Max (Abs) (ID)	4A
Drain to Source Breakdown Voltage	-20V
Dual Supply Voltage	-20V
Nominal Vgs	-1.2 V
Height	1mm
Length	3.1mm
Width	1.7mm
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

IRF5806TRPBF Product Details

IRF5806TRPBF Description

IRF5806TRPBF is a kind of P-channel HEXFET? power MOSFET provided by Infineon Technologies. It is able to provide extremely low on-resistance per silicon area based on advanced processing techniques. As a result, it is reliable and efficient for electronic engineers to use in battery and load management applications. Power MOSFET IRF5806TRPBF is available in the TSOP-6 package, making it ideally suited for applications where printed circuit board space is at a premium.
