Name: IRF6643TR1PBF
Brand: Infineon Technologies
SKU: IRF6643TR1PBF
Availability: InStock

new-10%

IRF6643TR1PBF

Manufacturer part number:IRF6643TR1PBF

Manufacturer:Infineon Technologies

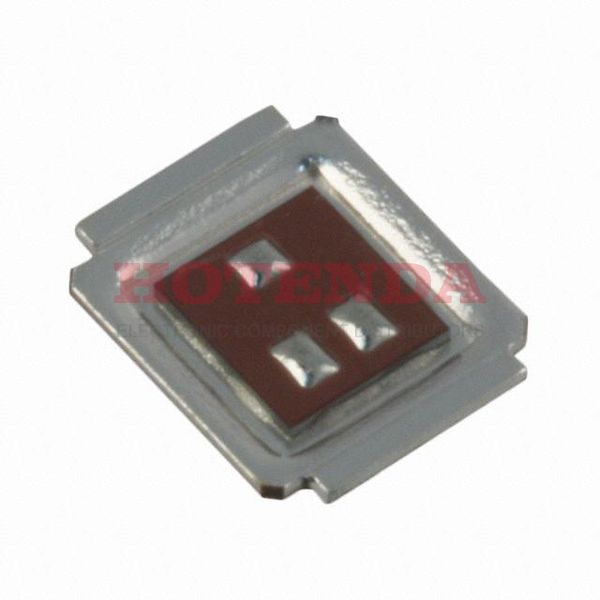

Description:MOSFET N-CH 150V 6.2A DIRECTFET

Case Package:SOT-23

Datasheet:IRF6643TR1PBF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	DirectFET™ Isometric MZ
Number of Pins	7
Supplier Device Package	DIRECTFET™ MZ
Operating Temperature	-40°C~150°C TJ
Packaging	Tape & Reel (TR)
Published	2006
Series	HEXFET®
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	SMD/SMT
Resistance	34.5MOhm
Max Operating Temperature	150°C
Min Operating Temperature	-40°C
Voltage - Rated DC	150V
Technology	MOSFET (Metal Oxide)
Current Rating	6.2A
Number of Elements	1
Power Dissipation-Max	2.8W Ta 89W Tc
Element Configuration	Single
Power Dissipation	2.8W
Turn On Delay Time	9.2 ns
FET Type	N-Channel
Rds On (Max) @ Id, Vgs	34.5mOhm @ 7.6A, 10V
Vgs(th) (Max) @ Id	4.9V @ 150μA
Input Capacitance (Ciss) (Max) @ Vds	2340pF @ 25V
Current - Continuous Drain (Id) @ 25°C	6.2A Ta 35A Tc
Gate Charge (Qg) (Max) @ Vgs	55nC @ 10V
Rise Time	5ns
Drain to Source Voltage (Vdss)	150V
Drive Voltage (Max Rds On,Min Rds On)	10V
Vgs (Max)	±20V
Fall Time (Typ)	4.4 ns
Turn-Off Delay Time	13 ns
Continuous Drain Current (ID)	6.2A
Threshold Voltage	4V
Gate to Source Voltage (Vgs)	20V
Drain to Source Breakdown Voltage	150V
Dual Supply Voltage	150V
Input Capacitance	2.34nF
Recovery Time	100 ns
Drain to Source Resistance	29mOhm
Rds On Max	34.5 mΩ
Nominal Vgs	4 V
Height	508μm
Length	5.45mm
Width	5.05mm
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Lead Free	Lead Free
