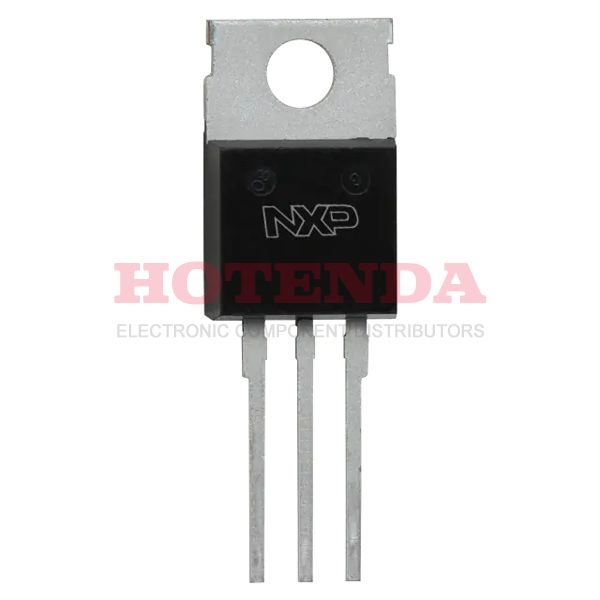

Name: PHP54N06T,127
Brand: NXP USA Inc.
SKU: PHP54N06T,127
Availability: InStock

new-10%

PHP54N06T,127

Manufacturer part number:PHP54N06T,127

Manufacturer:NXP USA Inc.

Description:MOSFET N-CH 55V 54A TO220AB

Case Package:SOT-23

Datasheet:PHP54N06T,127 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Through Hole
Package / Case	TO-220-3
Surface Mount	NO
Transistor Element Material	SILICON
Operating Temperature	-55°C~175°C TJ
Packaging	Tube
Published	2009
Series	TrenchMOS™
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Subcategory	FET General Purpose Power
Technology	MOSFET (Metal Oxide)
Terminal Position	SINGLE
Peak Reflow Temperature (Cel)	NOT SPECIFIED
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
Pin Count	3
JESD-30 Code	R-PSFM-T3
Qualification Status	Not Qualified
Number of Elements	1
Configuration	SINGLE WITH BUILT-IN DIODE
Power Dissipation-Max	118W Tc
Operating Mode	ENHANCEMENT MODE
Case Connection	DRAIN
FET Type	N-Channel
Transistor Application	SWITCHING
Rds On (Max) @ Id, Vgs	20m Ω @ 25A, 10V
Vgs(th) (Max) @ Id	4V @ 1mA
Input Capacitance (Ciss) (Max) @ Vds	1592pF @ 25V
Current - Continuous Drain (Id) @ 25°C	54A Tc
Gate Charge (Qg) (Max) @ Vgs	36nC @ 10V
Drain to Source Voltage (Vdss)	55V
Drive Voltage (Max Rds On,Min Rds On)	10V
Vgs (Max)	±20V
JEDEC-95 Code	TO-220AB
Drain Current-Max (Abs) (ID)	54A
Drain-source On Resistance-Max	0.02Ohm
Pulsed Drain Current-Max (IDM)	217A
DS Breakdown Voltage-Min	55V
Avalanche Energy Rating (Eas)	115 mJ
RoHS Status	ROHS3 Compliant

About PHP54N06T,127

The PHP54N06T,127 from NXP USA Inc. is a high-performance microcontroller designed for a wide range of embedded applications. This component features MOSFET N-CH 55V 54A TO220AB.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the PHP54N06T,127, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
