Name: IRF7207PBF
Brand: Infineon Technologies
SKU: IRF7207PBF
Availability: InStock

new-10%

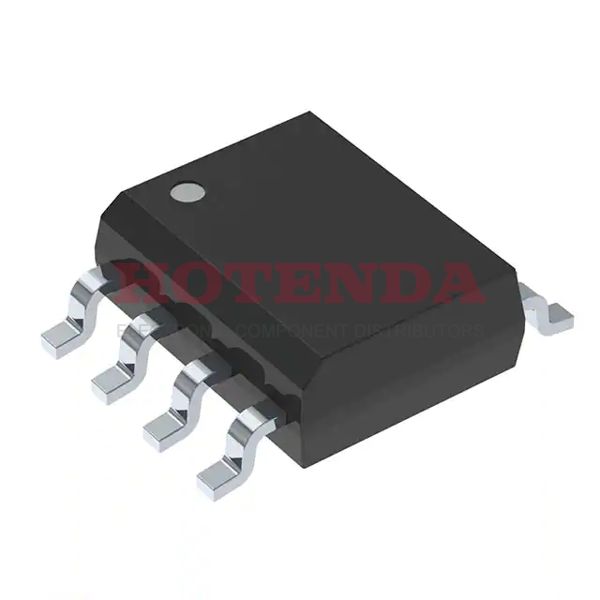

IRF7207PBF

Manufacturer part number:IRF7207PBF

Manufacturer:Infineon Technologies

Description:MOSFET P-CH 20V 5.4A 8-SOIC

Case Package:SOT-23

Datasheet:IRF7207PBF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154, 3.90mm Width)
Number of Pins	8
Supplier Device Package	8-SO
Operating Temperature	-55°C~150°C TJ
Packaging	Tube
Published	2004
Series	HEXFET®
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Max Operating Temperature	150°C
Min Operating Temperature	-55°C
Voltage - Rated DC	-20V
Technology	MOSFET (Metal Oxide)
Current Rating	-5.4A
Number of Elements	1
Power Dissipation-Max	2.5W Tc
Power Dissipation	2.5W
Turn On Delay Time	11 ns
FET Type	P-Channel
Rds On (Max) @ Id, Vgs	60mOhm @ 5.4A, 4.5V
Vgs(th) (Max) @ Id	700mV @ 250μA
Input Capacitance (Ciss) (Max) @ Vds	780pF @ 15V
Current - Continuous Drain (Id) @ 25°C	5.4A Tc
Gate Charge (Qg) (Max) @ Vgs	22nC @ 4.5V
Rise Time	24ns
Drain to Source Voltage (Vdss)	20V
Drive Voltage (Max Rds On,Min Rds On)	2.7V 4.5V
Vgs (Max)	±12V
Fall Time (Typ)	41 ns
Turn-Off Delay Time	43 ns
Continuous Drain Current (ID)	-5.4A
Threshold Voltage	-700mV
Gate to Source Voltage (Vgs)	12V
Drain to Source Breakdown Voltage	-20V
Input Capacitance	780pF
Drain to Source Resistance	60mOhm
Rds On Max	60 mΩ
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Lead Free	Lead Free

About IRF7207PBF

The IRF7207PBF from Infineon Technologies is a high-performance microcontroller designed for a wide range of embedded applications. This component features MOSFET P-CH 20V 5.4A 8-SOIC.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the IRF7207PBF, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
