Name: IRF7450TRPBF
Brand: Infineon Technologies
SKU: IRF7450TRPBF
Availability: InStock

new-10%

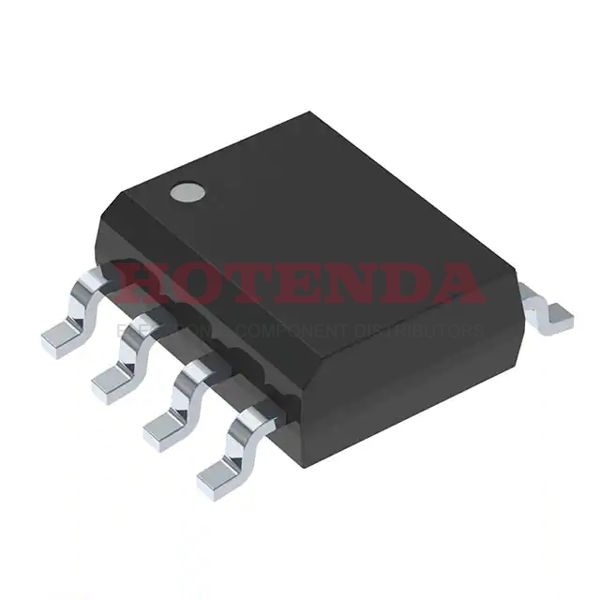

IRF7450TRPBF

Manufacturer part number:IRF7450TRPBF

Manufacturer:Infineon Technologies

Description:MOSFET N-CH 200V 2.5A 8-SOIC

Case Package:SOT-23

Datasheet:IRF7450TRPBF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	14 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154, 3.90mm Width)
Number of Pins	8
Transistor Element Material	SILICON
Operating Temperature	-55°C~150°C TJ
Packaging	Tape & Reel (TR)
Published	2004
Series	HEXFET®
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	8
Termination	SMD/SMT
Resistance	170mOhm
Additional Feature	AVALANCHE RATED
Voltage - Rated DC	200V
Technology	MOSFET (Metal Oxide)
Terminal Position	DUAL
Terminal Form	GULL WING
Current Rating	2.5A
Number of Elements	1
Power Dissipation-Max	2.5W Ta
Element Configuration	Single
Operating Mode	ENHANCEMENT MODE
Power Dissipation	3W
Turn On Delay Time	10 ns
FET Type	N-Channel
Transistor Application	SWITCHING
Rds On (Max) @ Id, Vgs	170m Ω @ 1.5A, 10V
Vgs(th) (Max) @ Id	5.5V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds	940pF @ 25V
Current - Continuous Drain (Id) @ 25°C	2.5A Ta
Gate Charge (Qg) (Max) @ Vgs	39nC @ 10V
Rise Time	3ns
Drive Voltage (Max Rds On,Min Rds On)	10V
Vgs (Max)	±30V
Fall Time (Typ)	18 ns
Turn-Off Delay Time	17 ns
Continuous Drain Current (ID)	2.5A
Threshold Voltage	5.5V
Gate to Source Voltage (Vgs)	30V
Drain to Source Breakdown Voltage	200V
Pulsed Drain Current-Max (IDM)	20A
Dual Supply Voltage	200V
Avalanche Energy Rating (Eas)	230 mJ
Nominal Vgs	5.5 V
Height	1.4986mm
Length	4.9784mm
Width	3.9878mm
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
Lead Free	Contains Lead, Lead Free

About IRF7450TRPBF

The IRF7450TRPBF from Infineon Technologies is a high-performance microcontroller designed for a wide range of embedded applications. This component features MOSFET N-CH 200V 2.5A 8-SOIC.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment
