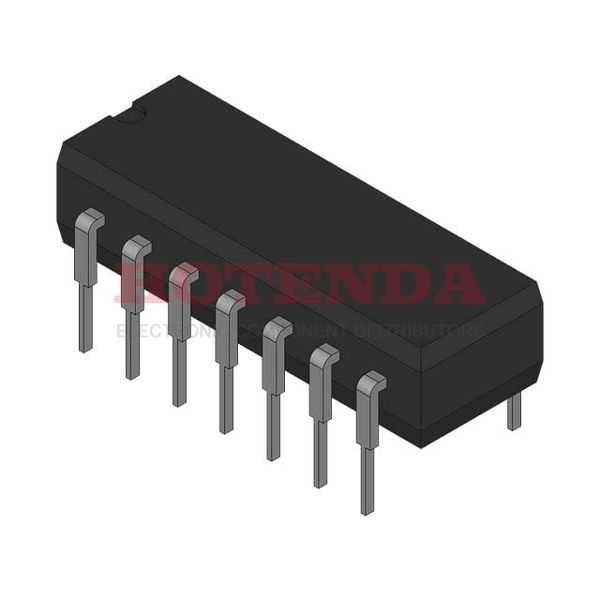

NLV14013BCPG

NLV14013BCPG

NLV14013BCPG

ON Semiconductor

1 Bit Flip Flop DUAL * Series

SOT-23

NLV14013BCPG Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 1 Week
Surface MountNO
Number of Terminals 14
ECCN (US) EAR99
Logic Family 4000
Number of Channels per Chip 2
Number of Elements per Chip 2
Number of Element Inputs 1
Number of Element Outputs 1
Bus Hold No
Set/Reset Set/Reset
Triggering Type Positive-Edge
Maximum Propagation Delay Time @ Maximum CL (ns) 150@10V|100@15V|350@5V
Absolute Propagation Delay Time (ns) 450
Process Technology CMOS
Input Signal Type Single-Ended
Maximum Low Level Output Current (mA) 4.2(Min)
Maximum High Level Output Current (mA) -4.2(Min)
Minimum Operating Supply Voltage (V) 3
Typical Operating Supply Voltage (V) 3.3|9|12|15|5
Maximum Operating Supply Voltage (V) 18
Maximum Quiescent Current (mA) 0.004
Propagation Delay Test Condition (pF) 50
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 125
Standard Package Name DIP
Supplier Package PDIP
Mounting Through Hole
Package Height 4.95(Max)
Package Length 19.69(Max)
Package Width 7.11(Max)
PCB changed 14
Lead Shape Through Hole
Package Bulk
Mfr onsemi
Product Status Active
Package Shape RECTANGULAR
Manufacturer ON Semiconductor
PackagingTube
Series *
JESD-609 Code e3
Part StatusObsolete
Terminal Finish Tin (Sn)
HTS Code8542.39.00.01
Technology CMOS
Terminal Position DUAL
Terminal FormTHROUGH-HOLE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 2
Terminal Pitch2.54 mm
Reach Compliance Code unknown
Pin Count14
JESD-30 Code R-PDIP-T14
Polarity Inverting/Non-Inverting
Supply Voltage-Max (Vsup) 18 V
Temperature GradeMILITARY
Supply Voltage-Min (Vsup) 3 V
Number of Bits 1
Family 4000/14000/40000
Logic Function D-Type
Seated Height-Max 4.69 mm
Output Polarity COMPLEMENTARY
Logic IC Type D FLIP-FLOP
Screening Level AEC-Q100
Trigger Type POSITIVE EDGE
Propagation Delay (tpd) 350 ns
Width 7.62 mm
Length 18.86 mm
RoHS StatusRoHS Compliant
In-Stock:4359 items

NLV14013BCPG Product Details

NLV14013BCPG Overview


D flip flop is included in the Tubepackage. There is a trigger configured with POSITIVE EDGE. JK flip flop is a part of the *series of FPGAs. An electronic device belonging to the family 4000/14000/40000can be found here. 1bits are used in its design. There is a 18 Vmaximum supply voltage (Vsup). Normally, the supply voltage (Vsup) should be above 3 V. It uses the logic IC D FLIP-FLOP. There are 2 functions associated with the JK flip flop. 14pins are provided on the D latch.

NLV14013BCPG Features


Tube package
* series
1 Bits
2 Functions
14 pin count


NLV14013BCPG Applications


There are a lot of ON Semiconductor
NLV14013BCPG Flip Flops applications.


  • Data transfer
  • Latch
  • Registers
  • Memory
  • Frequency division
  • Memory
  • Event Detectors
  • Data Synchronizers
  • Asynchronous counter
  • Modulo – n – counter
