Name: NTD5865NL-1G
Brand: ON Semiconductor
SKU: NTD5865NL-1G
Availability: InStock

new-10%

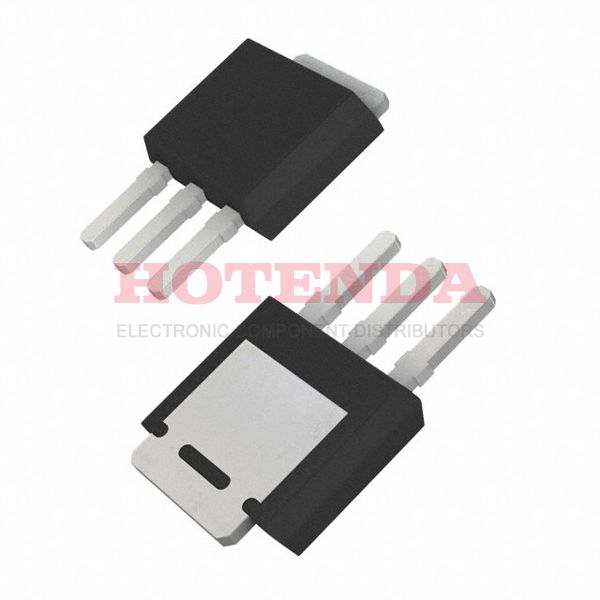

NTD5865NL-1G

Manufacturer part number:NTD5865NL-1G

Manufacturer:ON Semiconductor

Description:MOSFET N-CH 60V 46A IPAK

Case Package:SOT-23

Datasheet:NTD5865NL-1G Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	LAST SHIPMENTS (Last Updated: 1 day ago)
Mounting Type	Through Hole
Package / Case	TO-251-3 Short Leads, IPak, TO-251AA
Surface Mount	NO
Number of Pins	4
Transistor Element Material	SILICON
Operating Temperature	-55°C~175°C TJ
Packaging	Tube
Published	2010
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
Resistance	16MOhm
Terminal Finish	Tin (Sn)
Subcategory	FET General Purpose Power
Technology	MOSFET (Metal Oxide)
Pin Count	4
JESD-30 Code	R-PSIP-T3
Number of Elements	1
Power Dissipation-Max	71W Tc
Element Configuration	Single
Operating Mode	ENHANCEMENT MODE
Power Dissipation	52W
Case Connection	DRAIN
Turn On Delay Time	8.4 ns
FET Type	N-Channel
Transistor Application	SWITCHING
Rds On (Max) @ Id, Vgs	16m Ω @ 20A, 10V
Vgs(th) (Max) @ Id	2V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds	1400pF @ 25V
Current - Continuous Drain (Id) @ 25°C	46A Tc
Gate Charge (Qg) (Max) @ Vgs	29nC @ 10V
Rise Time	12.4ns
Drive Voltage (Max Rds On,Min Rds On)	4.5V 10V
Vgs (Max)	±20V
Fall Time (Typ)	4.4 ns
Turn-Off Delay Time	26 ns
Continuous Drain Current (ID)	46A
Gate to Source Voltage (Vgs)	20V
Drain to Source Breakdown Voltage	60V
Avalanche Energy Rating (Eas)	36 mJ
Height	7.62mm
Length	6.73mm
Width	2.38mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Lead Free	Lead Free
