Name: NTTFS4824NTWG
Brand: ON Semiconductor
SKU: NTTFS4824NTWG
Availability: InStock

new-10%

NTTFS4824NTWG

Manufacturer part number:NTTFS4824NTWG

Manufacturer:ON Semiconductor

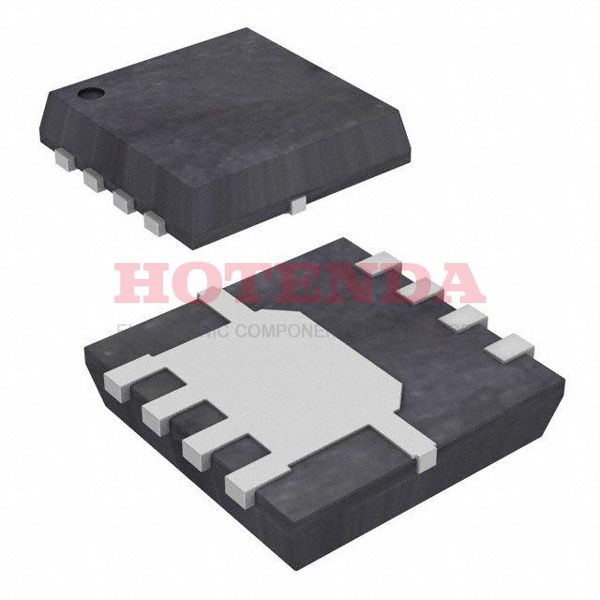

Description:MOSFET NFET U8FL 30V 69A 7.5mOhm

Case Package:SOT-23

Datasheet:NTTFS4824NTWG Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	LAST SHIPMENTS (Last Updated: 4 days ago)
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	8-PowerWDFN
Number of Pins	8
Transistor Element Material	SILICON
Operating Temperature	-55°C~150°C TJ
Packaging	Tape & Reel (TR)
Published	2009
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	5
ECCN Code	EAR99
Terminal Finish	Tin (Sn)
Subcategory	FET General Purpose Power
Technology	MOSFET (Metal Oxide)
Terminal Position	DUAL
Terminal Form	FLAT
Peak Reflow Temperature (Cel)	NOT SPECIFIED
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
Pin Count	8
JESD-30 Code	S-PDSO-F5
Qualification Status	Not Qualified
Number of Elements	1
Configuration	SINGLE WITH BUILT-IN DIODE
Power Dissipation-Max	660mW Ta 46.3W Tc
Operating Mode	ENHANCEMENT MODE
Power Dissipation	4.1W
Case Connection	DRAIN
FET Type	N-Channel
Transistor Application	SWITCHING
Rds On (Max) @ Id, Vgs	5m Ω @ 20A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds	2363pF @ 12V
Current - Continuous Drain (Id) @ 25°C	8.3A Ta 69A Tc
Gate Charge (Qg) (Max) @ Vgs	29nC @ 11.5V
Rise Time	38ns
Drive Voltage (Max Rds On,Min Rds On)	4.5V 11.5V
Vgs (Max)	±20V
Fall Time (Typ)	5.5 ns
Turn-Off Delay Time	18 ns
Continuous Drain Current (ID)	20.6A
Gate to Source Voltage (Vgs)	20V
Drain Current-Max (Abs) (ID)	69A
Drain-source On Resistance-Max	0.0075Ohm
Drain to Source Breakdown Voltage	30V
Feedback Cap-Max (Crss)	255 pF
RoHS Status	RoHS Compliant
Lead Free	Lead Free
