Name: ED365/4
Brand: On Shore Technology Inc.
SKU: ED365/4
Price: 2.43000 USD
Availability: InStock

new-10%

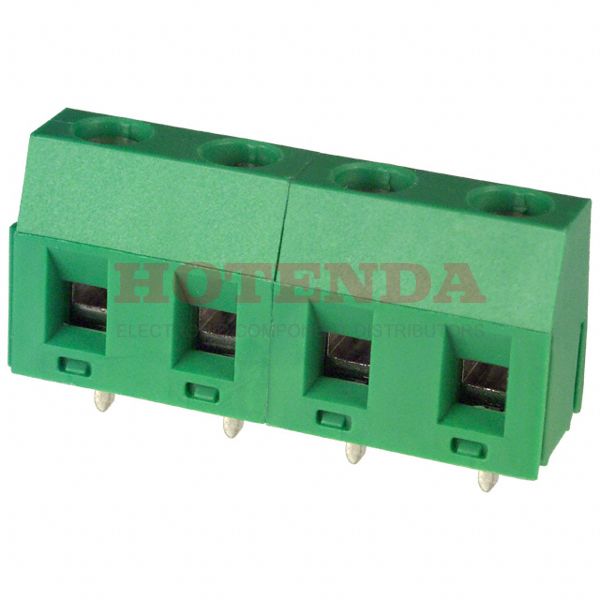

ED365/4

Manufacturer part number:ED365/4

Manufacturer:On Shore Technology Inc.

Description:0.295 7.50mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 12-22 AWG ED365

Case Package:SOT-23

Datasheet:ED365/4 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Plating	Brass
Mount	Through Hole
Mounting Type	Through Hole
Number of Pins	4
Housing Material	Polyamide (PA), Nylon
Contact Material - Plating	Brass
Clamp Material - Plating	Copper
Operating Temperature	-30°C~105°C
Packaging	Bulk
Series	ED365
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Number of Positions	4
Max Operating Temperature	105°C
Min Operating Temperature	-30°C
Color	Green
Number of Rows	1
Pitch	0.295 7.50mm
Lead Pitch	5mm
Housing Color	Green
Wire Gauge	12-22 AWG
Voltage	300V
Plating	Copper
Number of Levels	1
Current	16A
Wire Gauge (Max)	22 AWG
Wire Gauge (Min)	12 AWG
Torque - Screw	0.5 Nm (4.4 Lb-In)
Positions Per Level	4
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Number of Positions Per Level	4
Height	13.5mm
Length	30mm
Width	9mm
RoHS Status	ROHS3 Compliant
Flammability Rating	UL94 V-0

ED365/4 Product Details

ED365/4 Overview

The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the ED365 Series, it belongs to the range of products of that series.4 pins are on the device.A temperature below 105°C is best for using it.The device must run at -30°C degrees.Through Hole represents the mounting point for the part.-30°C~105°C Operating Temperature is the default operating temperature for the device.
