Name: ED800/2
Brand: On Shore Technology Inc.
SKU: ED800/2
Price: 0.95000 USD
Availability: InStock

new-10%

ED800/2

Manufacturer part number:ED800/2

Manufacturer:On Shore Technology Inc.

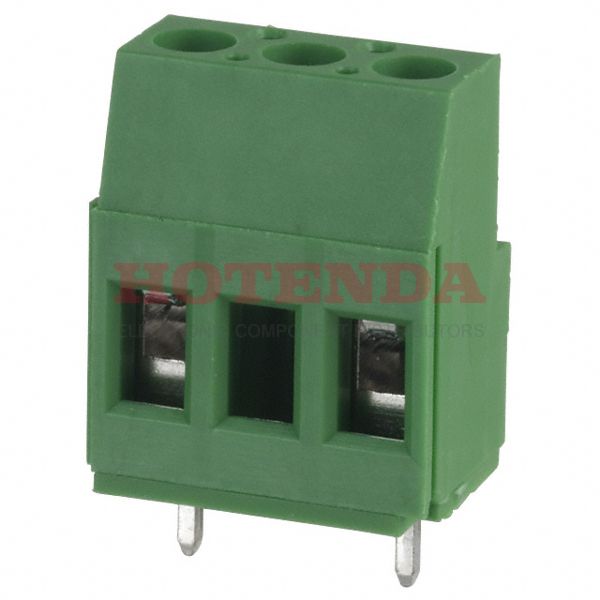

Description:0.394 10.00mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw 1 Levels 14-22 AWG ED800

Case Package:SOT-23

Datasheet:ED800/2 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Plating	Brass
Mount	Through Hole
Mounting Type	Through Hole
Number of Pins	2
Housing Material	Polyamide (PA), Nylon
Contact Material - Plating	Brass
Clamp Material - Plating	Copper
Operating Temperature	-30°C~105°C
Packaging	Bulk
Series	ED800
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Number of Positions	2
Max Operating Temperature	105°C
Min Operating Temperature	-30°C
Color	Green
Number of Rows	1
Pitch	0.394 10.00mm
Lead Pitch	10mm
Housing Color	Green
Wire Gauge	14-22 AWG
Voltage	250V
Plating	Copper
Number of Levels	1
Current	15A
Wire Gauge (Max)	22 AWG
Wire Gauge (Min)	14 AWG
Torque - Screw	0.5 Nm (4.4 Lb-In)
Positions Per Level	2
Mating Orientation	Horizontal with Board
Wire Termination	Screw
Screw Thread	M3
Number of Positions Per Level	2
Height	19mm
Length	15mm
Width	10.5mm
RoHS Status	ROHS3 Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

ED800/2 Product Details

ED800/2 Overview

The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the ED800 Series of products.The device is equipped with 2 pins.It's best to use it when the temperature is below 105°C.This device must operate at a minimum temperature of -30°C.The part is mounted by Through Hole.The device runs in -30°C~105°C Operating Temperature.
