Name: ED4101/4-KD
Brand: On Shore Technology Inc.
SKU: ED4101/4-KD
Price: 2.61000 USD
Availability: InStock

new-10%

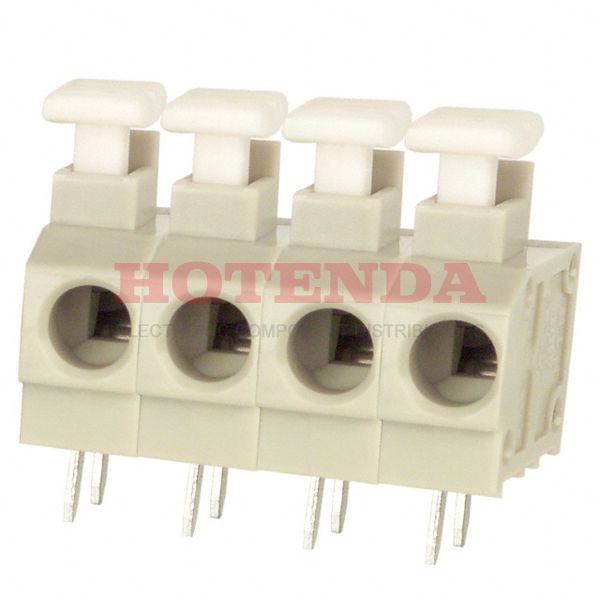

ED4101/4-KD

Manufacturer part number:ED4101/4-KD

Manufacturer:On Shore Technology Inc.

Description:0.197 5.00mm Gray, Slate Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screwless - Push Button Clamp 1 Levels 14-20 AWG ED4101

Case Package:SOT-23

Datasheet:ED4101/4-KD Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Material	Copper
Contact Plating	Copper
Mount	Through Hole
Mounting Type	Through Hole
Number of Pins	4
Housing Material	Polyamide (PA), Nylon
Contact Material - Plating	Copper
Clamp Material - Plating	Steel, Stainless
Operating Temperature	-30°C~105°C
Packaging	Bulk
Series	ED4101
Feature	Interlocking (Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
Number of Positions	4
Max Operating Temperature	105°C
Min Operating Temperature	-30°C
Color	Gray, Slate
Number of Rows	1
Pitch	0.197 5.00mm
Lead Pitch	5mm
Housing Color	Grey
Wire Gauge	14-20 AWG
Voltage	300V
Plating	Steel
Number of Levels	1
Current	10A
Wire Gauge (Max)	20 AWG
Wire Gauge (Min)	14 AWG
Positions Per Level	4
Mating Orientation	Horizontal with Board
Wire Termination	Screwless - Push Button Clamp
Number of Positions Per Level	4
Height	15.5mm
Length	21.6mm
Width	12.5mm
RoHS Status	ROHS3 Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

ED4101/4-KD Product Details

ED4101/4-KD Overview

There is a Through Hole mounting type for the device.This product is packaged in a case marked Bulk.Product number ED4101 belongs to the ED4101 Series.A 4 pin is provided on the device.Whenever the temperature is below 105°C, it's best.There is a minimum temperature requirement of [0°C] for this device.In many ways, it is more powerful due to its Interlocking (Side) feature.There is a Through Hole mount on the part.This device operates at a temperature of -30°C~105°C.
