Name: 1706248
Brand: Phoenix Contact
SKU: 1706248
Price: 6.82000 USD
Availability: InStock

new-10%

1706248

Manufacturer part number:1706248

Manufacturer:Phoenix Contact

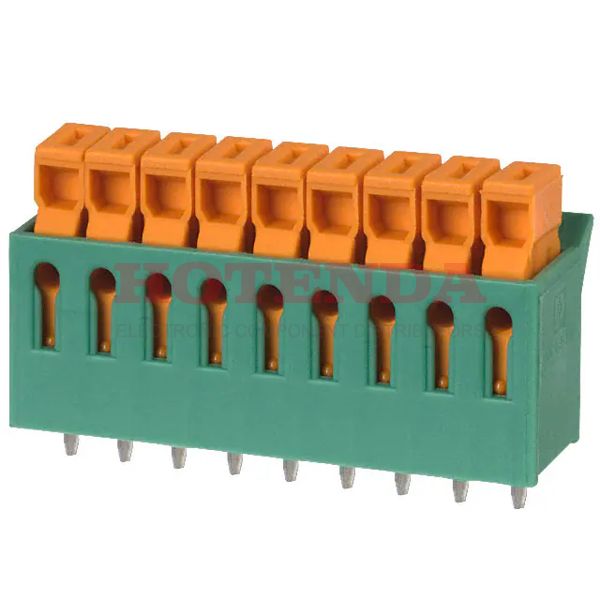

Description:0.150 3.81mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screwless - IDC 1 Levels 22-28 AWG COMBICON IDC

Case Package:SOT-23

Datasheet:1706248 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Insulation Material	Nylon
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	70.999992g
Packaging	Bulk
Series	COMBICON IDC
Published	2008
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	IDC
Connector Type	IDC, IDT
Color	Green
Gender	Male
Voltage - Rated	160V
Pitch	0.150 3.81mm
Orientation	Straight
Depth	14.8mm
Reach Compliance Code	unknown
Current Rating	5A
Approval Agency	CSA, UL
Number of Contacts	9
Wire Gauge	22-28 AWG
Voltage	300V
Max Current Rating	5A
Number of Levels	1
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	22 AWG
Number of Decks	1
Terminal and Terminal Block Type	MODULAR TERMINAL BLOCK
Number of Ways	9
Safety Approval	UL; CSA
Mating Orientation	Horizontal with Board
Wire Termination	Screwless - IDC
Wire Cross Section	0.34 mm2
Length	35.48mm
Width	10mm
Thickness	30.48mm
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1706248 Product Details

1706248 Overview

The packaging contains IDC, IDT.There is a Through Hole mounting type for the device.This product is packaged in a case marked Bulk.Product number COMBICON IDC belongs to the COMBICON IDC Series.There is a Through Hole mount on the part.
