Name: ED555/16DS
Brand: On Shore Technology Inc.
SKU: ED555/16DS
Price: 5.14000 USD
Availability: InStock

new-10%

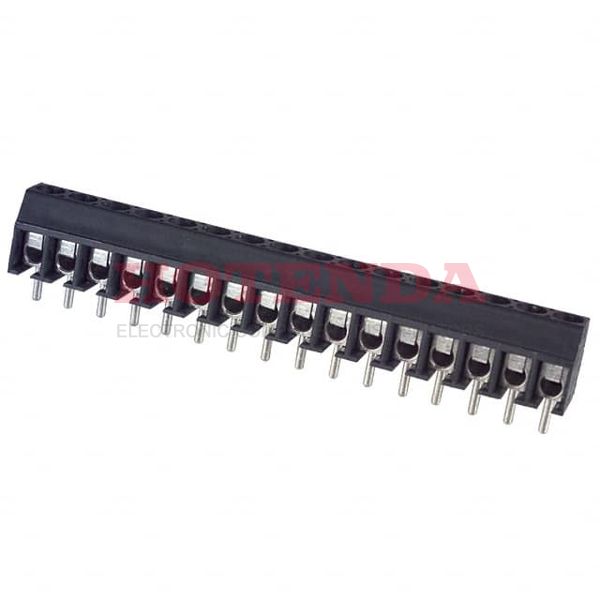

ED555/16DS

Manufacturer part number:ED555/16DS

Manufacturer:On Shore Technology Inc.

Description:0.138 3.50mm Gray Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Leaf Spring, Wire Guard 1 Levels 16-28 AWG ED555/DS

Case Package:SOT-23

Datasheet:ED555/16DS Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	9 Weeks
Contact Material	Brass
Contact Plating	Brass
Mount	Through Hole
Mounting Type	Through Hole
Number of Pins	16
Housing Material	Polyamide (PA), Nylon
Contact Material - Plating	Brass
Clamp Material - Plating	Steel, Stainless
Operating Temperature	-30°C~105°C
Packaging	Bulk
Series	ED555/DS
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Number of Positions	16
Max Operating Temperature	105°C
Min Operating Temperature	-30°C
Color	Gray
Number of Rows	1
Pitch	0.138 3.50mm
Lead Pitch	3.5mm
Housing Color	Grey
Wire Gauge	16-28 AWG
Voltage	150V
Plating	Steel
Number of Levels	1
Current	6A
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	16 AWG
Torque - Screw	0.4 Nm (3.5 Lb-In)
Positions Per Level	16
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Leaf Spring, Wire Guard
Screw Thread	M2
Number of Positions Per Level	16
Height	8.2mm
Length	56mm
Width	6.2mm
RoHS Status	ROHS3 Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

ED555/16DS Product Details

ED555/16DS Overview

Through Hole indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the ED555/DS Series.It is equipped with 16 pins.Use it below 105°C.A minimum temperature of -30°C must be maintained for the operation of this device.By Through Hole, the part is mounted.Operating temperature is set to -30°C~105°C.
