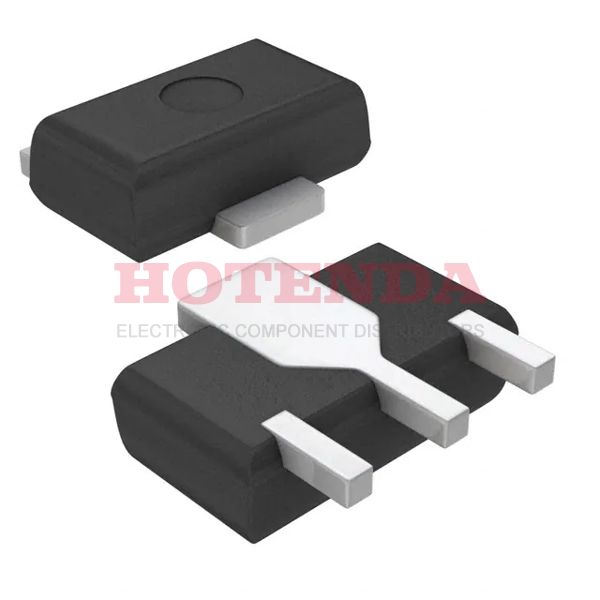

DSA7U01Q0L Overview
This device has a DC current gain of 90 @ 150mA 10V, which is the ratio between the base current and the collector current.With a collector emitter saturation voltage of -600mV, it offers maximum design flexibility.In VCE saturation, Ic is at its maximum value (saturated), and the vce saturation (Max) is 600mV @ 50mA, 500mA.If the emitter base voltage is kept at -5V, a high level of efficiency can be achieved.The part has a transition frequency of 120MHz.Input voltage breakdown is available at 100V volts.A maximum collector current of 500mA volts is possible.
DSA7U01Q0L Features
the DC current gain for this device is 90 @ 150mA 10V
a collector emitter saturation voltage of -600mV
the vce saturation(Max) is 600mV @ 50mA, 500mA
the emitter base voltage is kept at -5V
a transition frequency of 120MHz
DSA7U01Q0L Applications
There are a lot of Panasonic Electronic Components DSA7U01Q0L applications of single BJT transistors.
- Inverter
- Interface
- Driver
- Muting
