Name: 1701159
Brand: Phoenix Contact
SKU: 1701159
Price: 3.08000 USD
Availability: InStock

new-10%

1701159

Manufacturer part number:1701159

Manufacturer:Phoenix Contact

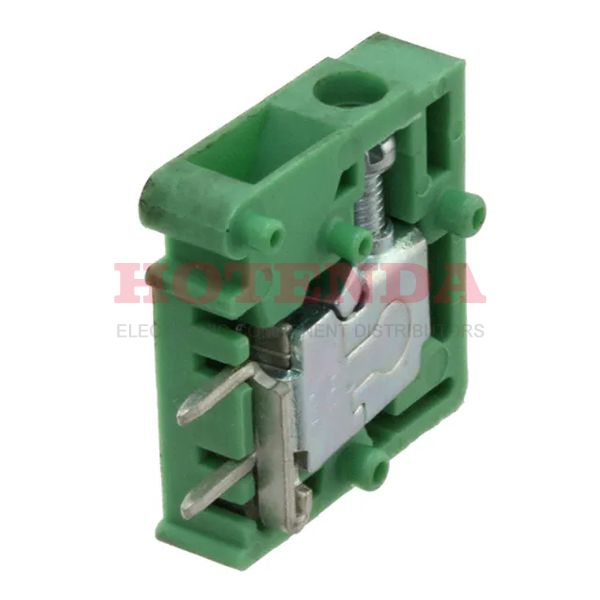

Description:5mm Green Bulk Polyamide (PA), Nylon Through Hole Vertical with Board Screw - Pressure Clip 14-24 AWG COMBICON FRONT

Case Package:SOT-23

Datasheet:1701159 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	3.559991g
Packaging	Bulk
Series	COMBICON FRONT
Published	2011
Feature	Interlocking (Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Screw
Color	Green
Number of Rows	1
Voltage - Rated	320V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	5mm
Orientation	Right Angle
Depth	19.5mm
Reach Compliance Code	unknown
Current Rating	24A
Number of Contacts	1
Wire Gauge	14-24 AWG
Max Supply Voltage	250V
Max Current Rating	24A
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	14 AWG
Number of Decks	1
Terminal and Terminal Block Type	MODULAR TERMINAL BLOCK
Torque - Screw	0.4-0.5 Nm (3.5-4.4 Lb-In)
Number of Ways	1
Safety Approval	UL
Mating Orientation	Vertical with Board
Wire Termination	Screw - Pressure Clip
Screw Thread	M2.5
Height	19.5mm
Length	5mm
Width	22mm
RoHS Status	RoHS Compliant

1701159 Product Details

1701159 Overview

This product is packaged in a Screw carton.Through Hole is the mounting type for the device.The product is packaged in a Bulk case.It's part of the COMBICON FRONT Series.In addition, there are other features, such as PA, 94V-0, to mention just a few.Many aspects of its Interlocking (Side) feature increase its effectiveness.Mounting of the part is based on Through Hole.This chip shouldn't have a voltage higher than 250V.
