Name: 1702051
Brand: Phoenix Contact
SKU: 1702051
Price: 4.28000 USD
Availability: InStock

new-10%

1702051

Manufacturer part number:1702051

Manufacturer:Phoenix Contact

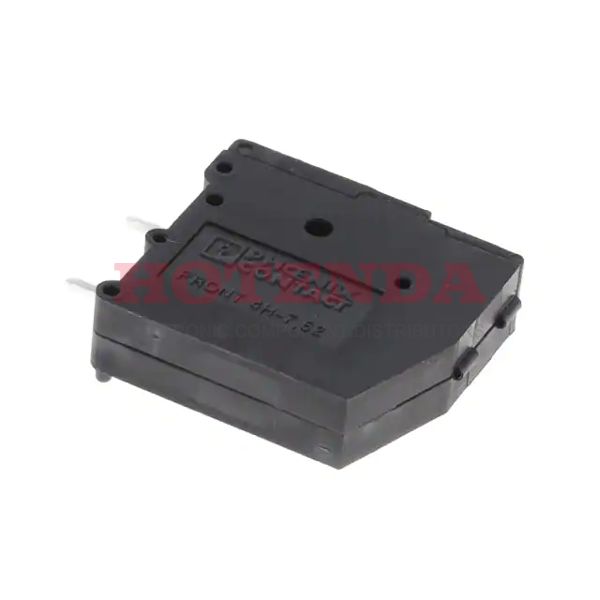

Description:7.62mm Black Bulk Polyamide (PA), Nylon Through Hole Horizontal and Vertical with Board Screw - Rising Cage Clamp 10-24 AWG COMBICON FRONT

Case Package:SOT-23

Datasheet:1702051 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Brass
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	3.00006kg
Contact Material - Plating	Tin Plated
Packaging	Bulk
Series	COMBICON FRONT
Published	2011
Feature	Interlocking (Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Color	Black
Gender	Female
Voltage - Rated	630V
HTS Code	8536.69.40.40
Pitch	7.62mm
Current Rating	32A
Wire Gauge	10-24 AWG
Voltage	300V
ELV	Compliant
Current	30A
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	24 AWG
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Mating Orientation	Horizontal and Vertical with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Number of Positions Per Level	1
Height	33.4mm
Length	26mm
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Not Applicable

1702051 Product Details

1702051 Overview

It comes in Screw packaging.The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the COMBICON FRONT Series of products.Its Interlocking (Side) feature renders it more powerful in many ways.The part is mounted by Through Hole.
