1713075

1713075

Phoenix Contact

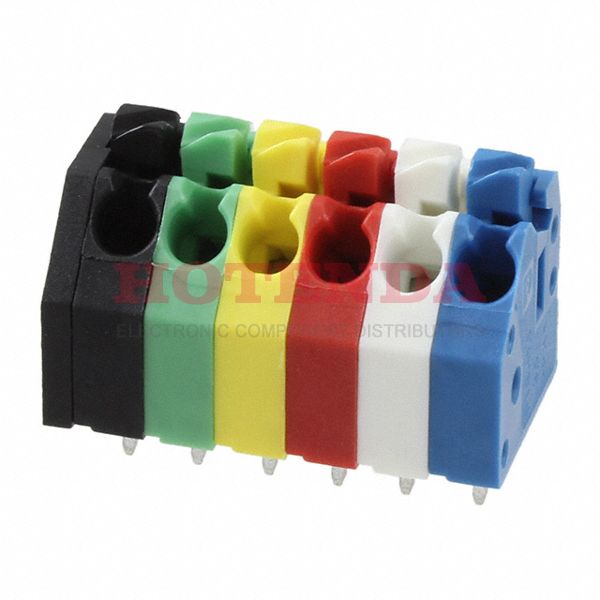

0.138 3.50mm Multiple Bulk Through Hole 45° (135°) Angle with Board Screwless - Spring Cage, Tension Clamp 1 Levels COMBICON PTSA

SOT-23

1713075 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 13 Weeks
Contact PlatingTin
Mount Through Hole
Mounting Type Through Hole
Weight 2.890007g
PackagingBulk
Series COMBICON PTSA
Published 2010
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
Color Multiple
Voltage - Rated 250V
Pitch 0.138 3.50mm
Current Rating2A
Number of Levels 1
Wire Gauge (Max) 16 AWG
Wire Gauge (Min) 24 AWG
Positions Per Level 6
Mating Orientation 45° (135°) Angle with Board
Wire TerminationScrewless - Spring Cage, Tension Clamp
Number of Positions Per Level 6
Height 13.1mm
Length 12mm
RoHS StatusRoHS Compliant
In-Stock:5664 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.776300$0.7763
10$0.732358$7.32358
100$0.690904$69.0904
500$0.651796$325.898
1000$0.614902$614.902

1713075 Product Details

1713075 Overview


Through Hole is the mounting type of the device.We pack the product in a Bulk case.This is from the COMBICON PTSA Series.This part is mounted by Through Hole.

1713075 Features


COMBICON PTSA series


1713075 Applications


There are a lot of Phoenix Contact
1713075 Terminal Blocks applications.


  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
