Name: 1718032
Brand: Phoenix Contact
SKU: 1718032
Price: 4.86000 USD
Availability: InStock

new-10%

1718032

Manufacturer part number:1718032

Manufacturer:Phoenix Contact

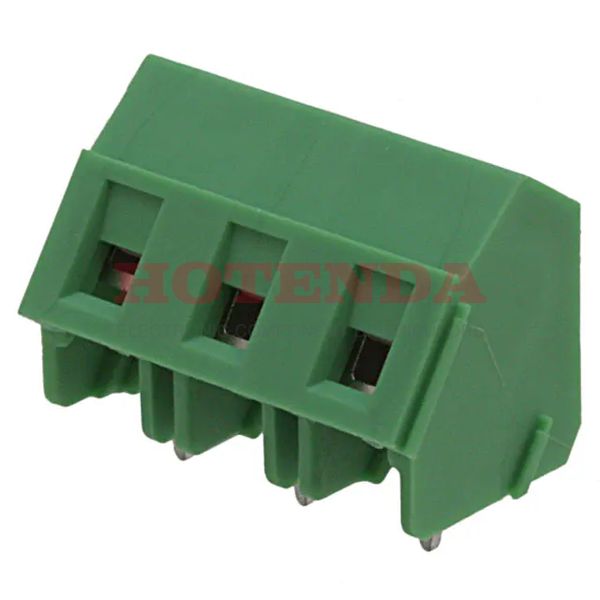

Description:0.295 7.50mm Green Bulk Polyamide (PA), Nylon Through Hole 35° (145°) Angle with Board Screw - Rising Cage Clamp 1 Levels 14-30 AWG COMBICON GSMKDSP

Case Package:SOT-23

Datasheet:1718032 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	5.39001g
Packaging	Bulk
Series	COMBICON GSMKDSP
Published	2011
Feature	Interlocking (Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Screw
Color	Green
Voltage - Rated	630V
Additional Feature	POLYAMIDE, 94V-2
Pitch	0.295 7.50mm
Depth	13.4mm
Current Rating	17.5A
Wire Gauge	14-30 AWG
Voltage	300V
Max Supply Voltage	500V
Max Current Rating	17.5A
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	14 AWG
Terminal and Terminal Block Type	MODULAR TERMINAL BLOCK
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	3
Safety Approval	UL; CSA
Mating Orientation	35° (145°) Angle with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Number of Positions Per Level	3
Wire Cross Section	2.5 mm2
Height	18.8mm
Length	22.5mm
Width	22.5mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1718032 Product Details

1718032 Overview

Packaging is in the form of Screw.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the COMBICON GSMKDSP Series.Other features include POLYAMIDE, 94V-2, to name just a few.Several benefits come from the Interlocking (Side) feature.There is a mounting hole at Through Hole.There should be no voltage above 0 on the supply line for this chip.
