Name: 1718728
Brand: Phoenix Contact
SKU: 1718728
Price: 1.53000 USD
Availability: InStock

new-10%

1718728

Manufacturer part number:1718728

Manufacturer:Phoenix Contact

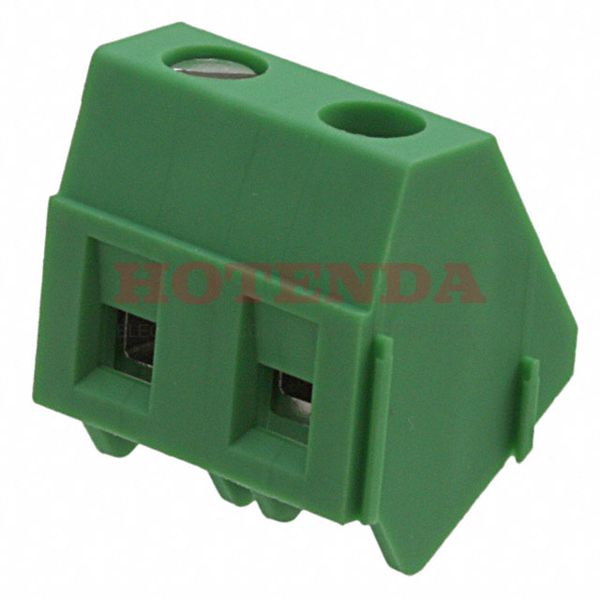

Description:0.300 7.62mm Green Bulk Polyamide (PA), Nylon Through Hole 35° (145°) Angle with Board Screw - Rising Cage Clamp 1 Levels 14-30 AWG COMBICON GSMKDSP

Case Package:SOT-23

Datasheet:1718728 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	40.999988g
Published	2011
Series	COMBICON GSMKDSP
Packaging	Bulk
Feature	Interlocking (Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Color	Green
Voltage - Rated	630V
HTS Code	8536.69.40.40
Pitch	0.300 7.62mm
Reach Compliance Code	unknown
Current Rating	17.5A
Wire Gauge	14-30 AWG
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	26 AWG
Terminal and Terminal Block Type	MODULAR TERMINAL BLOCK
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	2
Safety Approval	UL; CSA
Mating Orientation	35° (145°) Angle with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Number of Positions Per Level	2
Height	15.24mm
Length	13.4mm
Width	18.8mm
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1718728 Product Details

1718728 Overview

The product is packaged in Screw.This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the COMBICON GSMKDSP Series.There are a number of advantages to its Interlocking (Side) feature.Part Through Hole is mounted to the part.
