Name: 1725012
Brand: Phoenix Contact
SKU: 1725012
Price: 3.36000 USD
Availability: InStock

new-10%

1725012

Manufacturer part number:1725012

Manufacturer:Phoenix Contact

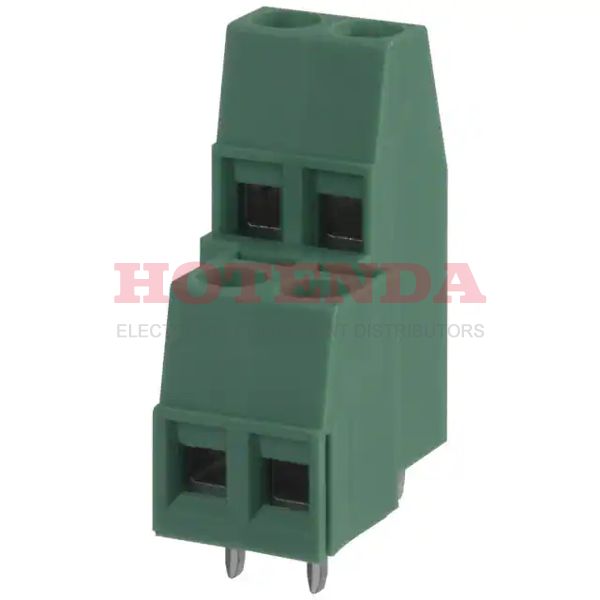

Description:0.197 5.00mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Rising Cage Clamp 14-30 AWG COMBICON MKKDS

Case Package:SOT-23

Datasheet:1725012 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Tin
Mount	Through Hole
Mounting Type	Through Hole
Insulation Material	Nylon
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	7.019994g
Packaging	Bulk
Series	COMBICON MKKDS
Published	2010
Feature	Interlocking (Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Color	Green
Number of Rows	2
Gender	Male
Voltage - Rated	400V
Pitch	0.197 5.00mm
Orientation	Straight
Depth	21.4mm
Reach Compliance Code	unknown
Current Rating	17.5A
Approval Agency	CSA, UL
Number of Contacts	4
Wire Gauge	14-30 AWG
Voltage	300V
Max Supply Voltage	250V
Max Current Rating	22A
Current	10A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	14 AWG
Number of Decks	2
Terminal and Terminal Block Type	MODULAR TERMINAL BLOCK
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	2
Safety Approval	UL; CSA
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Stripping Length	7mm
Height	21.4mm
Length	12.5mm
Width	21.4mm
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1725012 Product Details

1725012 Overview

Currently, it is packaged in Screw.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the COMBICON MKKDS Series, it belongs to the range of products of that series.A number of features make the Interlocking (Side) feature more powerful.Through Hole represents the mounting point for the part.This chip should not be supplied with voltages greater than zero.
