Name: 1725672
Brand: Phoenix Contact
SKU: 1725672
Price: 3.65000 USD
Availability: InStock

new-10%

1725672

Manufacturer part number:1725672

Manufacturer:Phoenix Contact

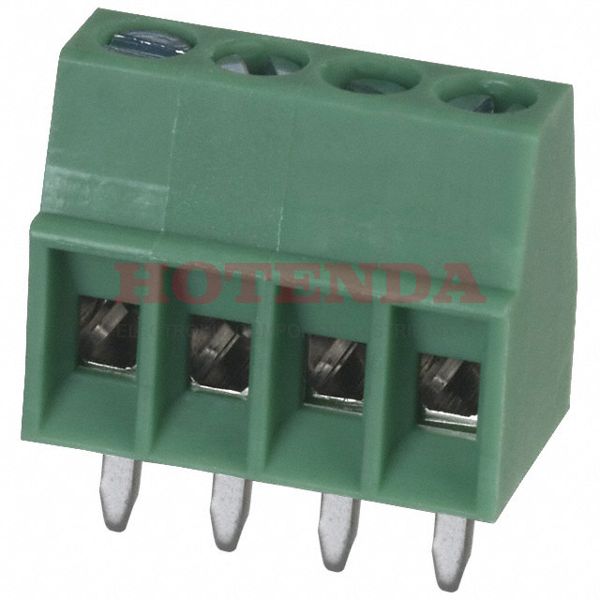

Description:0.100 2.54mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw 1 Levels 20-30 AWG COMBICON MPT

Case Package:SOT-23

Datasheet:1725672 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Tin
Mount	Through Hole
Mounting Type	Through Hole
Insulation Material	Nylon
Housing Material	Polyamide (PA), Nylon
Weight	1.270002g
Packaging	Bulk
Series	COMBICON MPT
Published	2001
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	PCB, Screw, Terminal Block
Color	Green
Number of Rows	1
Voltage - Rated	125V
Pitch	0.100 2.54mm
Orientation	Straight
Depth	6.2mm
Current Rating	6A
Voltage - Rated AC	63V
Approval Agency	CSA, UL
Lead Pitch	2.54mm
Number of Contacts	4
Wire Gauge	20-30 AWG
Max Supply Voltage	63V
Max Current Rating	6A
Number of Levels	1
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	20 AWG
Wire/Cable Gauge	20 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.12-0.15 Nm (1.0-1.3 Lb-In)
Number of Ways	4
Safety Approval	CSA; CUL; EAC; UL
Mating Orientation	Horizontal with Board
Wire Termination	Screw
Screw Thread	M1.6
Wire Cross Section	0.5 mm2
Height	10.62mm
Length	6.2mm
Width	14mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1725672 Product Details

1725672 Overview

Packaging is in the form of PCB, Screw, Terminal Block.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the COMBICON MPT Series.There is a mounting hole at Through Hole.There should be no voltage above 0 on the supply line for this chip.
