Name: 1727256
Brand: Phoenix Contact
SKU: 1727256
Price: 3.34000 USD
Availability: InStock

new-10%

1727256

Manufacturer part number:1727256

Manufacturer:Phoenix Contact

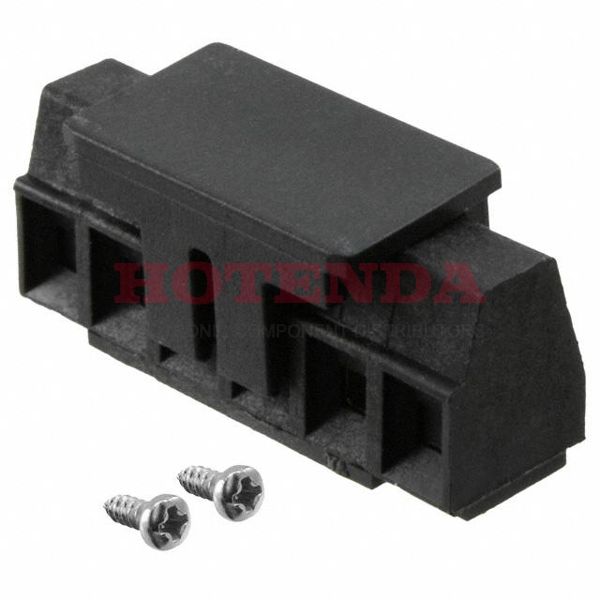

Description:0.150 3.81mm Black Tube Polyamide (PA), Nylon, Glass Filled Surface Mount Horizontal with Board Screw - Rising Cage Clamp 1 Levels 16-30 AWG COMBICON MKDS

Case Package:SOT-23

Datasheet:1727256 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Material	Polyamide
Housing Material	Polyamide (PA), Nylon, Glass Filled
Weight	4.734002g
Packaging	Tube
Series	COMBICON MKDS
Published	2011
Feature	Board Lock
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Color	Black
Number of Rows	1
Voltage - Rated	160V
Pitch	0.150 3.81mm
Orientation	Straight
Depth	7.3mm
Reach Compliance Code	not_compliant
Current Rating	8A
Number of Contacts	4
Wire Gauge	16-30 AWG
Voltage	300V
Max Supply Voltage	160V
Max Current Rating	8A
Number of Levels	1
Current	10A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	16 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways	4
Safety Approval	UL
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M2
Height	9.3mm
Length	22.86mm
Width	22.86mm
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1727256 Product Details

1727256 Overview

There is a mounting type of Surface Mount for this device.It is necessary to use a Tube case for packaging the product.This product is part of the COMBICON MKDS Series.In many ways, its Board Lock feature makes it more powerful.Surface Mount is used to mount the part.It is recommended that the supply voltage of this chip not exceed 160V.
