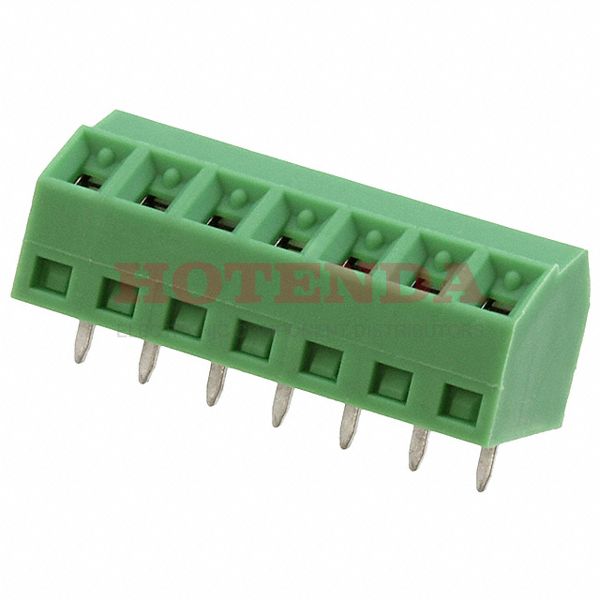

Name: 1728336
Brand: Phoenix Contact
SKU: 1728336
Price: 5.50000 USD
Availability: InStock

new-10%

1728336

Manufacturer part number:1728336

Manufacturer:Phoenix Contact

Description:0.150 3.81mm Green Bulk Polyamide (PA), Nylon Through Hole 55° (125°) Angle with Board Screw - Rising Cage Clamp 1 Levels 16-30 AWG COMBICON SMKDS

Case Package:SOT-23

Datasheet:1728336 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	4.41901g
Packaging	Bulk
Series	COMBICON SMKDS
Published	2011
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Color	Green
Number of Rows	1
Voltage - Rated	200V
Additional Feature	POLYAMIDE, 94V-2
HTS Code	8536.69.40.40
Pitch	0.150 3.81mm
Current Rating	10A
Wire Gauge	16-30 AWG
Voltage	300V
Number of Levels	1
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	16 AWG
Number of Decks	1
Terminal and Terminal Block Type	MODULAR TERMINAL BLOCK
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Positions Per Level	7
Number of Ways	7
Safety Approval	UL; CSA
Mating Orientation	55° (125°) Angle with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M2
Number of Positions Per Level	7
Height	13mm
Length	10mm
Width	26.66mm
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1728336 Product Details

1728336 Overview

The product is packaged in Screw.This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the COMBICON SMKDS Series.To name a few, there is also POLYAMIDE, 94V-2.Part Through Hole is mounted to the part.
