Name: 1729128
Brand: Phoenix Contact
SKU: 1729128
Price: 1.21000 USD
Availability: InStock

new-10%

1729128

Manufacturer part number:1729128

Manufacturer:Phoenix Contact

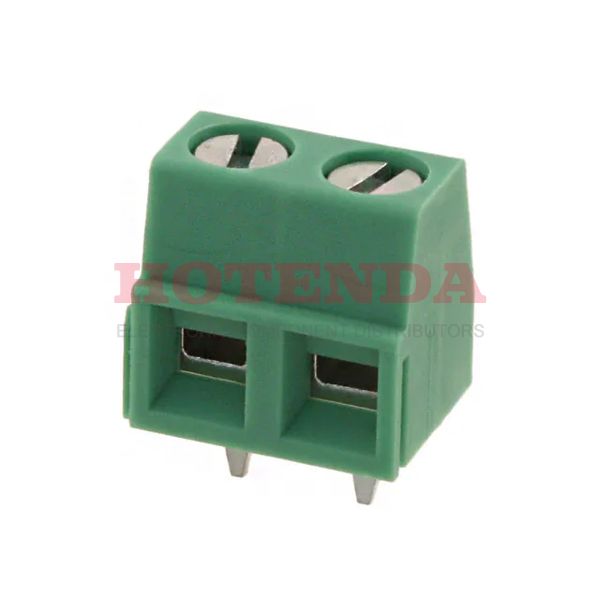

Description:0.200 5.08mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 14-30 AWG COMBICON MKDSN

Case Package:SOT-23

Datasheet:1729128 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Tin
Mount	Through Hole
Mounting Type	Through Hole
Insulation Material	Nylon
Housing Material	Polyamide (PA), Nylon
Weight	1.979987g
Packaging	Bulk
Series	COMBICON MKDSN
Published	2001
Feature	Interlocking (Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Max Operating Temperature	100°C
Min Operating Temperature	-20°C
Color	Green
Number of Rows	1
Voltage - Rated	400V
Additional Feature	UL 94V-0, PA, SAFETY APPROVAL: RS; SEV; UL
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Orientation	Straight
Depth	8.1mm
Current Rating	13.5A
Voltage - Rated AC	250V
Approval Agency	CSA, UL
Lead Pitch	5.08mm
Number of Contacts	2
Wire Gauge	14-30 AWG
Voltage	300V
Max Supply Voltage	400V
Max Current Rating	13.5A
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	14 AWG
Wire/Cable Gauge	26 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	2
Safety Approval	CB; CCA; CSA; CUL; EAC; GL
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Test Voltage	4kV
Height	10mm
Length	10.16mm
Width	8.1mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1729128 Product Details

1729128 Overview

It comes in Screw packaging.The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the COMBICON MKDSN Series of products.In addition, there are other features such as UL 94V-0, PA, SAFETY APPROVAL: RS; SEV; UL, to mention only a few.It's best to use it when the temperature is below 100°C.This device must operate at a minimum temperature of -20°C.Its Interlocking (Side) feature renders it more powerful in many ways.The part is mounted by Through Hole.The supply voltage of this chip should not exceed 400V.
