Name: 1733020
Brand: Phoenix Contact
SKU: 1733020
Price: 3.06000 USD
Availability: InStock

new-10%

1733020

Manufacturer part number:1733020

Manufacturer:Phoenix Contact

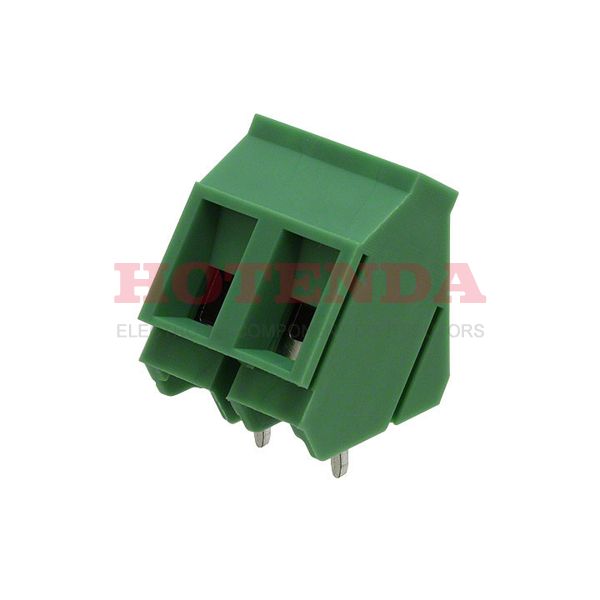

Description:0.295 7.50mm Green Bulk Polyamide (PA), Nylon Through Hole 35° (145°) Angle with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG COMBICON GSMKDS

Case Package:SOT-23

Datasheet:1733020 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Tin
Mount	Through Hole
Mounting Type	Through Hole
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	4.8g
Packaging	Bulk
Series	COMBICON GSMKDS
Published	2010
Feature	Interlocking (Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	630V
HTS Code	8536.69.40.40
Pitch	0.295 7.50mm
Depth	16mm
Reach Compliance Code	unknown
Current Rating	24A
Approval Agency	CSA, UL
Number of Contacts	2
Wire Gauge	12-30 AWG
Voltage	300V
Max Supply Voltage	500V
Max Current Rating	24A
Number of Levels	1
Current	15A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Terminal and Terminal Block Type	MODULAR TERMINAL BLOCK
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	2
Safety Approval	UL; CSA
Mating Orientation	35° (145°) Angle with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Stripping Length	8mm
Height	16mm
Length	15mm
Width	16mm
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1733020 Product Details

1733020 Overview

This product is packaged in a Screw box.Through Hole indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the COMBICON GSMKDS Series.In many ways, Interlocking (Side) makes it more powerful.By Through Hole, the part is mounted.A supply voltage of 500V should not be exceeded by this chip.
