Name: 1733570
Brand: Phoenix Contact
SKU: 1733570
Price: 1.55000 USD
Availability: InStock

new-10%

1733570

Manufacturer part number:1733570

Manufacturer:Phoenix Contact

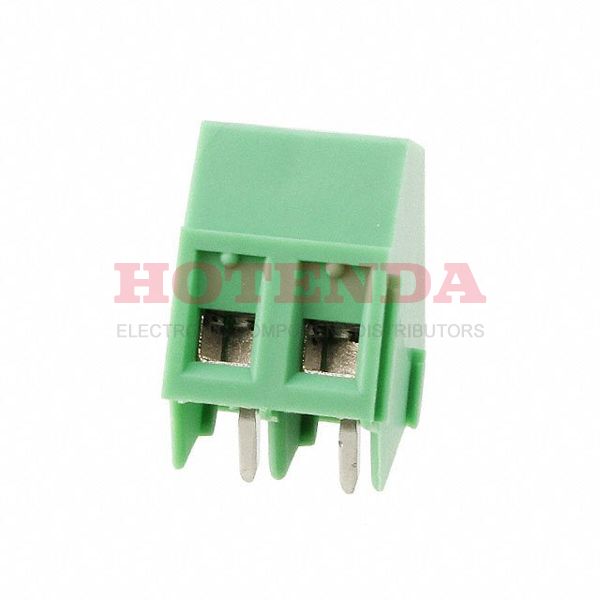

Description:0.200 5.08mm Green Bulk Polyamide (PA), Nylon Through Hole 35° (145°) Angle with Board Screw - Rising Cage Clamp 1 Levels 14-30 AWG COMBICON SMKDSP

Case Package:SOT-23

Datasheet:1733570 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	2.810005g
Packaging	Bulk
Series	COMBICON SMKDSP
Published	2001
Feature	Interlocking (Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Screw
Color	Green
Number of Rows	1
Voltage - Rated	400V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Depth	13.4mm
Current Rating	17.5A
Voltage - Rated AC	250V
Approval Agency	CB, CSA, UL
Lead Pitch	5.08mm
Number of Contacts	2
Wire Gauge	14-30 AWG
Voltage	300V
Max Supply Voltage	250V
Max Current Rating	22A
Number of Levels	1
Current	15A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	14 AWG
Wire/Cable Gauge	14 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	2
Safety Approval	UL
Mating Orientation	35° (145°) Angle with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Stripping Length	7mm
Height	13.4mm
Length	10.16mm
Width	18.8mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1733570 Product Details

1733570 Overview

A Screw package is included with it.Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the COMBICON SMKDSP Series of products.Additionally, there are other features, such as PA, 94V-0.A number of features make it more powerful because of its Interlocking (Side) feature.Through Hole mounts the part.This chip should not be supplied with a voltage greater than 250V.
