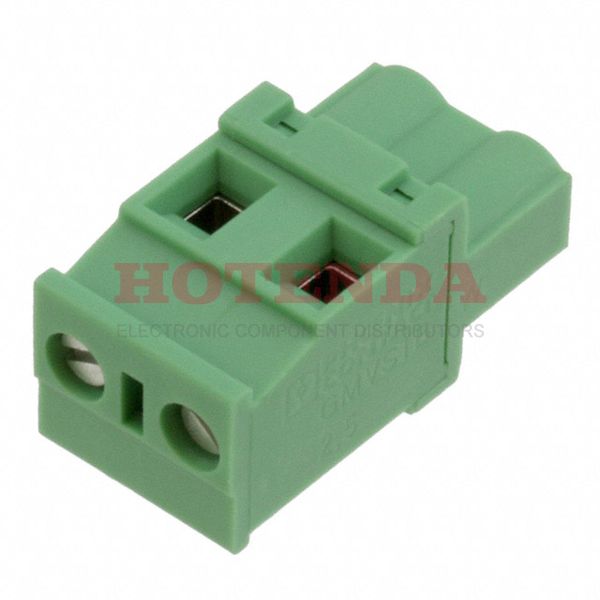

Name: 1737819
Brand: Phoenix Contact
SKU: 1737819
Price: 4.09000 USD
Availability: InStock

new-10%

1737819

Manufacturer part number:1737819

Manufacturer:Phoenix Contact

Description:1737819 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1737819 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Free Hanging, Plug-In
Mounting Type	Free Hanging (In-Line)
Insulation Material	Nylon
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	1.59982kg
Packaging	Bulk
Published	2012
Series	COMBICON GMVSTBW
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	500V
HTS Code	8536.69.40.40
Voltage - Rated DC	500V
Pitch	0.295 7.50mm
Orientation	Straight
Depth	12.6mm
Insulation Height	1.024 26.01mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Approval Agency	CB, CSA, UL, VDE
Voltage	300V
Max Supply Voltage	500V
Max Current Rating	12A
Number of Levels	1
Current	10A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	24 AWG
Number of Poles	2
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Current - UL	15A
Voltage - IEC	1kV
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	2
Safety Approval	UL; CSA
Plug Wire Entry	270°
Wire Gauge or Range - mm²	0.2-2.5mm2
Screw Size	M3
Stripping Length	7mm
Height	13mm
Length	13mm
Width	26mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-2

1737819 Product Details

1737819 Overview

Packaging is Socket.The mounting type of the device is Free Hanging (In-Line).We pack the product in a Bulk case.Among the products in the COMBICON GMVSTBW Series, it is one of the most popular.It is more powerful in many ways due to its Retention Latches (Non-Wire Side) feature.Part Free Hanging, Plug-In is mounted to the part.There should be no voltage over 500V on the supply line of this chip.Compared to other Plug, Female Sockets products, this part has a lot of benefits to offer.
