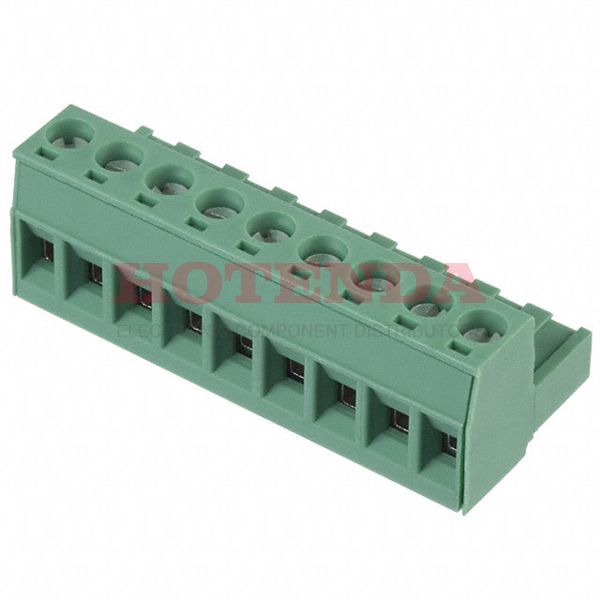

Name: 1757080
Brand: Phoenix Contact
SKU: 1757080
Price: 9.46000 USD
Availability: InStock

new

1757080

Manufacturer part number:1757080

Manufacturer:Phoenix Contact

Description:1757080 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1757080 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	5 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Insulation Material	Nylon
Housing Material	Polyamide (PA), Nylon
Weight	127.999996g
Packaging	Bulk
Published	2008
Series	COMBICON MSTB
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Voltage - Rated	250V
Pitch	0.200 5.08mm
Orientation	Right Angle
Depth	18.2mm
Insulation Height	0.591 15.00mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Voltage - Rated AC	250V
Approval Agency	CB, CSA, UL, VDE, cULus
Number of Contacts	9
Voltage	300V
Max Supply Voltage	250V
Max Current Rating	12A
Number of Levels	1
Current	15A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	9
Safety Approval	UL; VDE; CSA
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Screw Size	M3
Stripping Length	7mm
Wire Cross Section	2.5 mm2
Height	18.3mm
Length	45.72mm
Width	45.72mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1757080 Product Details

1757080 Overview

The product is packaged in Screw, Socket.Mounting type is Free Hanging (In-Line).Bulk cases are used to package the product.COMBICON MSTB Series product.A number of advantages can be derived from its Retention Latches (Non-Wire Side) feature.This part is mounted by Cable, Free Hanging. Ensure that this chip's supply voltage does not exceed 250V volts.With this part, you get a lot of benefits that you won't find in other Plug, Female Sockets products.
